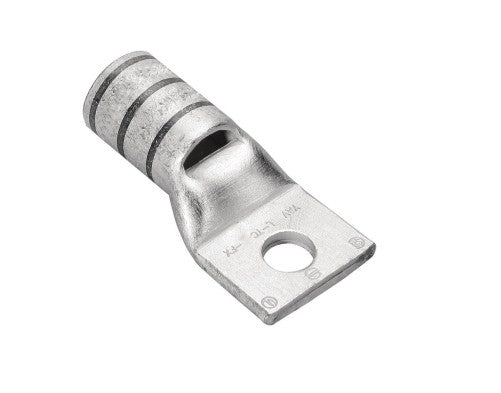

Burndy YAV6CL4BOX | Uninsulated Ring Terminal, 6 AWG, 1-Hole, 5/16 in. Stud
Regular price
$3.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAV6CL4BOX | Uninsulated Ring Terminal, 6 AWG, 1-Hole, 5/16 ...
Regular price
$3.86
Unit price
Description
Description
Burndy YAV6CL4BOX | Uninsulated Ring Terminal, 6 AWG, 1-Hole, 5/16 in. Stud
Burndy - YAV6CL4BOX - Features
- Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
- Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
- Double thick tongue structurally a very strong terminal tongue
- Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
- Internally bevelled barrel for easy cable entry, especially for flexible conductors
- Inspection hole provides easy visual check for proper conductor insertion
- Electro-tin plated for a long lasting durable corrosion resistance
Specifications
Specifications
Burndy - YAV6CL4BOX - Specifications
| Application | For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance |
|---|---|
| Catalog Number | YAV6CL4BOX |
| Connector Type | Ring Terminal |
| Die Index | 39 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Copper | Material Composition |
| DLP Copper | Tin Plating |
| Military Specification | AS20659 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Ring |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Ring Tongue |
| UPC | 781810539101 |
| UPC 14 Digit GTIN | 00781810539101 |
