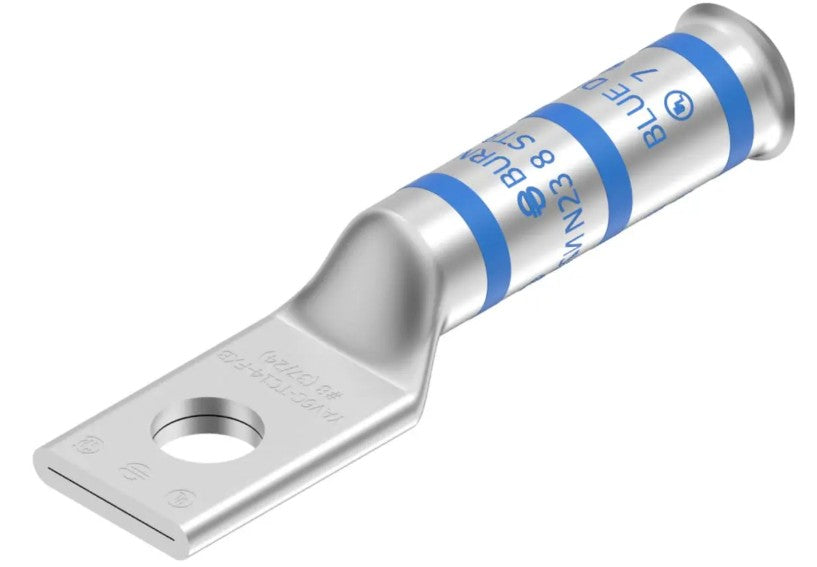

Burndy YAV6CTC14FXB | Copper Compression Terminal, 1-Hole, 1/4 in. ...
Regular price
$6.36
Unit price
Brand: Burndy
|
SKU:
10390901
Regular price
$6.36
Unit price
Description
Description
Burndy YAV6CTC14FXB | Copper Compression Terminal, 1-Hole, 1/4 in. Stud, Long Barrel
6 Flex G,H,I,K,M,DLO, 6 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Bell End, Tin Plated, UL/CSA, 90°C, Up to 35kV, Blue Color Code, 7 or 374 Die Index.
Burndy - YAV6CTC14FXB - Features
- Barrel is designed with a "belled" end opening at the wire entry to ensure smooth insertion of highly flexible stranded wire, preventing possible damaging of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions
Specifications
Specifications
Burndy - YAV6CTC14FXB - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAV6CTC14FXB |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 1 |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Tin Plated |
| UPC | 781810044650 |
| UPC 14 Digit GTIN | 00781810044650 |
