Brand: Burndy
|
SKU:
YAZ252TC516E6

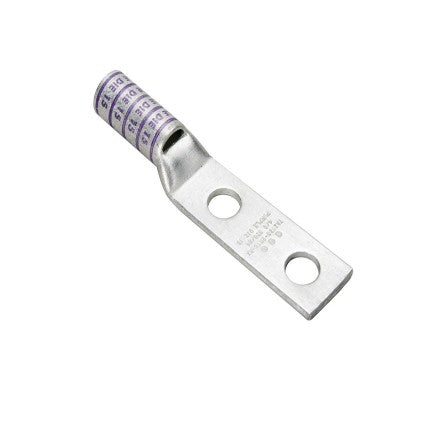

Burndy YAZ252TC516E6 | Copper Compression Terminal, 1/0 AWG, 2-Hole, 5/16 in. Stud, 7/8 in. Spacing, Long Barrel
Regular price
$16.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZ252TC516E6 | Copper Compression Terminal, 1/0 AWG, 2-Hole...
Regular price
$16.15
Unit price
Description
Description
Burndy YAZ252TC516E6 | Copper Compression Terminal, 1/0 AWG, 2-Hole, 5/16 in. Stud, 7/8 in. Spacing, Long Barrel
1/0 AWG CU, Two Hole, 5/16 Stud Size, 7/8 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Pinnk Color Code, 12 or 348 Die Index.
Burndy - YAZ252TC516E6 - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAZ252TC516E6 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAZ252TC516E6 |
| Color Code | Pink |
| Connector Type | LONG BARREL |
| Die Index | 12 |
| Feature - Barrel Style | Skived |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive, Tin Plated |
| UPC | 781810197080 |
| UPC 14 Digit GTIN | 00781810197080 |
