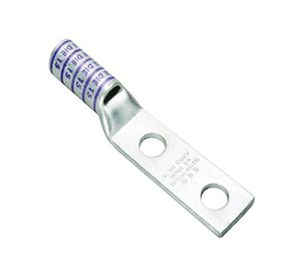

Burndy YAZ282TC14E2 | 25019157 | Compression Lug, Long Barrel, CU Conductor, 4/0 AWG
Burndy - YAZ282TC14E2 | 25019157 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Tubing Compression Lug
- Tongue Angle: Straight
- Length: 3.55 Inch
- Tongue Type: Standard
- Barrel Style: Skived
- Bolt Hole Size: 0.27 Inch
- Stud Size: 1/4 Inch
- B
- Length: 1.62 Inch
- Pad Width: 1.02 InchHole to Hole Distance: 0.75 Inch
- Strip
- Number Of Holes: 2
- Wire Size: 4/0 AWG Code And 200 Navy
- Type Of Plating: Electro Plated Tin
- Color Code: Purple
- Index Number: 15
- Material: Copper
- Voltage Rating: 600 Volt - 35 Kilo-Volt
Specifications
Specifications
Burndy - YAZ282TC14E2 | 25019157 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAZ282TC14E2 | 25019157 - Specifications
| Barrel | Long |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 4/0 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Lug |
| Material | Copper |
| Voltage | 35kV |
| Barrel Length/?Type | Long |
| Stud Holes | 2 |
| Conductor Type | Copper |
| Conductor Size - Code | 4/0 AWG |
| Conductor Size - Navy | 200 MCM |
