Brand: Burndy
|
SKU:
YAZ312TC3890

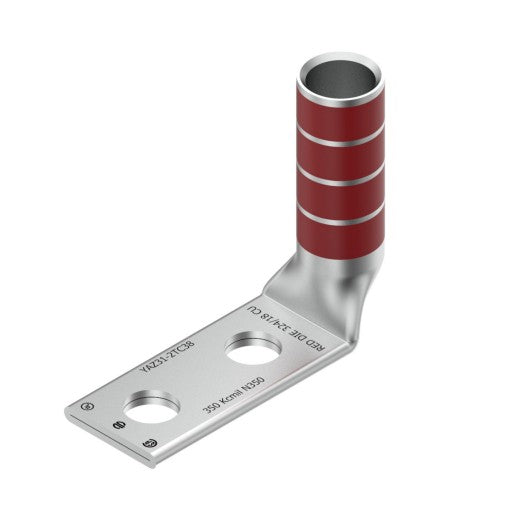

Burndy YAZ312TC3890 | Copper Compression Terminal, 350 kcmil, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Long Barrel, 90°
Regular price
$84.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZ312TC3890 | Copper Compression Terminal, 350 kcmil, 2-Hol...
Regular price
$84.87
Unit price
Description
Description
Burndy YAZ312TC3890 | Copper Compression Terminal, 350 kcmil, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Long Barrel, 90°
350 kcmil CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Red Color Code, 18 or 324 Die Index.
Burndy - YAZ312TC3890 - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAZ312TC3890 - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAZ312TC3890 |
| Color Code | Red |
| Connector Type | LONG BARREL |
| Die Index | 18 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plated | YES |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive, Tin Plated |
| UPC | 781810211571 |
| UPC 14 Digit GTIN | 00781810211571 |
