Brand: Burndy
|
SKU:
YAZ6C2TC14E1

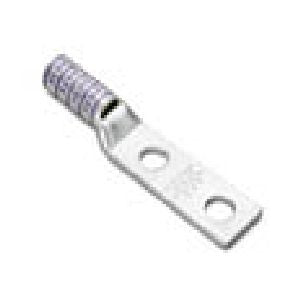

Burndy YAZ6C2TC14E1 | 25019130 | Lug, Compression, Copper, 1/4 Inch, 2 Holes, 6 AWG, Blue
Regular price
$6.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZ6C2TC14E1 | 25019130 | Lug, Compression, Copper, 1/4 Inch...
Regular price
$6.36
Unit price
Description
Description
Burndy YAZ6C2TC14E1 | 25019130 | Lug, Compression, Copper, 1/4 Inch, 2 Holes, 6 AWG, Blue
Cable Lugs: Type - Compression Terminal; Material - Copper, Tin Plated; Voltage - 600V-35 kV; Barrel Length/Type - Long; Lug L x Tongue W - 3.03 x 0.45 in; Stud Holes - 2H; Stud Hole Spacing - 1.00 in Space; Conductor Type - CU; Conductor Size - Code - 6 AWG; Conductor Size - Navy - 30 (19) Navy; Screw/Stud Size - 1/4 in; Color Code - Blue
Burndy - YAZ6C2TC14E1 | 25019130 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Terminal
- Tongue Angle: Straight
- Length: 3.03 Inch
- Tongue Type: Standard
- Barrel Style: Skived
- Bolt Hole Size: 0.27 Inch
- Stud Size: 1/4 Inch
- B
- Length: 1.12 Inch
- Pad Width: 0.45 InchHole to Hole Distance: 1 Inch
- Strip
- Number Of Holes: 2
- Wire Size: 6 AWG Copper Stranded, 30 AWG (19) Navy
- Type Of Plating: Electro Plated Tin
- Color Code: Blue
- Index Number: 7, 374
- Material: Copper
- Voltage Rating: 600 Volt - 35 Kilo-Volt
Specifications
Specifications
Burndy - YAZ6C2TC14E1 | 25019130 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAZ6C2TC14E1 | 25019130 - Specifications
| Barrel | Long |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 6 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Copper, Tin-plated |
| Voltage | 600V-35 kV |
| Barrel Length/?Type | Long |
| Stud Hole Spacing | 1.00 in Space |
| Conductor Type | Copper |
| Conductor Size - Code | 6 AWG |
| Conductor Size - Navy | 30 (19) Navy |
