Brand: Burndy
|
SKU:
1002144

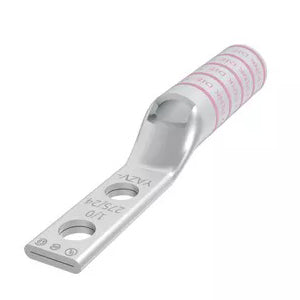

Burndy YAZV252NT14FX | Compression Lug, Standard, Copper, 1/0 AWG, 1/0 AWG, Code/Flex, 12, Copper, 2 Hole
Regular price
$14.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZV252NT14FX | Compression Lug, Standard, Copper, 1/0 AWG, ...
Regular price
$14.91
Unit price
Description
Description
Burndy YAZV252NT14FX | Compression Lug, Standard, Copper, 1/0 AWG, 1/0 AWG, Code/Flex, 12, Copper, 2 Hole
Compression Lug, Barrel Type: Standard, Conductor Material: Copper, Conductor Size: 1/0 AWG, Conductor Size - AWG MCM: 1/0 AWG, Conductor Type: Code/Flex, Die Index: 12, Material: Copper, Number of Holes: 2, Screw/Stud Size: 1/4 in., Stud Hole Spacing: 5/8 in., Stud Size: 1/4 in., Tongue Angle: Straight, Tongue Type: Narrow Ton, Voltage: 35 kV.
Specifications
Specifications
Burndy - YAZV252NT14FX - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Compression Grounding and Bonding
- Compression Lugs
Burndy - YAZV252NT14FX - Specifications
| Manufacturer Name | Burndy |
|---|---|
| Manufacturer Part Number | YAZV252NT14FX |
| Item Description | Compression Lug, Standard, Copper, 1/0 AWG, 1/0 AWG, Code/Flex, 12, Copper, 2 Hole |
| Barrel Type | Standard |
| Barrel | Long |
| Color Code | Pink |
| Conductor Material | Copper |
| Conductor Size | 1/0 AWG |
| Conductor Type | Code/Flex |
| Die Index | 12, 348 |
| Hole Size | 1/4 in. |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Material | Electro Tin-Plated Copper |
| Number of Holes | 2 |
| Overall Length | 3.35 in. |
| Overall Width | 0.48 in. |
| Screw/Stud Size | 1/4 in. |
| Stud Hole Spacing | 5/8 in. |
| Stud Size | 1/4 in. |
| Tongue Angle | Straight |
| Tongue Thickness | 0.12 in. |
| Tongue Type | Narrow |
| Tongue Width | 0.48 in. |
| Type | Flex Compression |
| Voltage Rating | 35 kV |
