Brand: Burndy
|
SKU:
990676

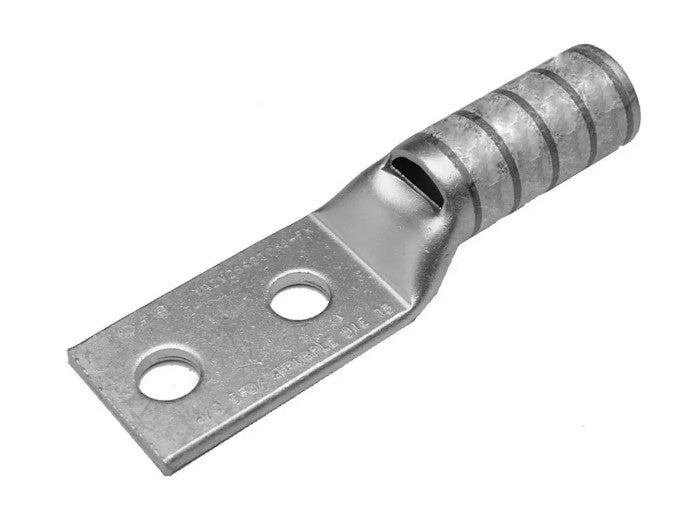

Burndy YAZV292TC38FX | Compression Terminal, 4/0 Flex, 250 kcmil Code, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Long Barrel
Regular price
$25.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZV292TC38FX | Compression Terminal, 4/0 Flex, 250 kcmil Co...
Regular price
$25.83
Unit price
Description
Description
Burndy YAZV292TC38FX | Compression Terminal, 4/0 Flex, 250 kcmil Code, 2-Hole, 3/8 in. Stud, 1 in. Spacing, Long Barrel
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 4/0 Flex, 250 Code, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, Lng bbl, Yellow, 16 Index.
Burndy - YAZV292TC38FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAZV292TC38FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAZV292TC38FX |
| Color Code | Yellow |
| Connector Type | LONG BARREL |
| Die Index | 16 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | TERMINALS, HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive |
| UPC | 781810235171 |
| UPC 14 Digit GTIN | 00781810235171 |
