Burndy YAZV2C2TC14E1FX | Compression Terminal, 2 AWG Weld 125/24, 1...
Regular price
$10.18
Unit price
Description
Description

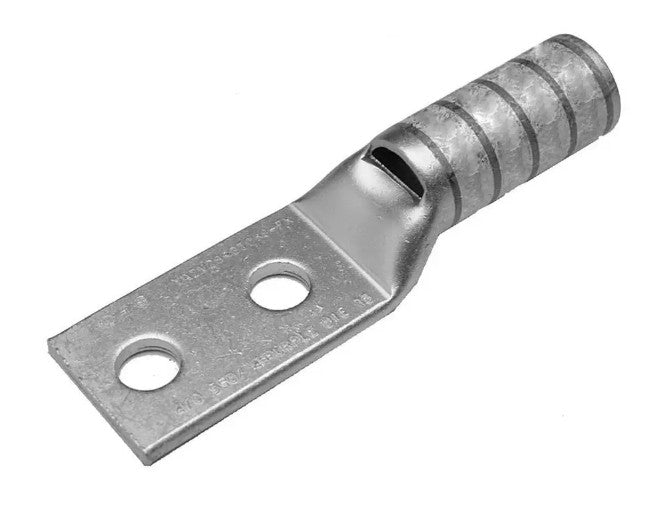

Burndy YAZV2C2TC14E1FX | Compression Terminal, 2 AWG Weld 125/24, 150/24, 2-Hole, 1/4 in. Stud, Long Barrel
Cu compression long barrel flex conductor, 2 holes/W/ insp window, #2 weld(125/24-150/24), #2AWG, 1/4" stud, Tin plated, Brown, 10 index.
Burndy - YAZV2C2TC14E1FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAZV2C2TC14E1FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAZV2C2TC14E1FX |
| Color Code | Brown |
| Connector Type | LONG BARREL |
| Die Index | 10 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLUG |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive |
| UPC | 781810228302 |
| UPC 14 Digit GTIN | 00781810228302 |
