Brand: Burndy
|
SKU:
9865092

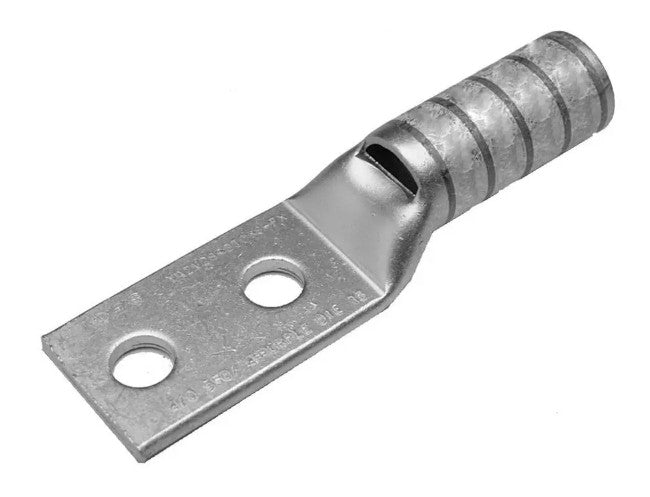

Burndy YAZV6C2TC10FX | Compression Terminal, 6 AWG Code, 6 61/24 DLO, 2-Hole, #10 Stud, 5/8 in. Spacing, Long Barrel
Regular price
$10.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZV6C2TC10FX | Compression Terminal, 6 AWG Code, 6 61/24 DL...
Regular price
$10.18
Unit price
Description
Description
Burndy YAZV6C2TC10FX | Compression Terminal, 6 AWG Code, 6 61/24 DLO, 2-Hole, #10 Stud, 5/8 in. Spacing, Long Barrel
2 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 6(61/#24) DLO, #6 AWG Code, #10 stud, 5/8" spacing, Blue.
Burndy - YAZV6C2TC10FX - Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Specifications
Burndy - YAZV6C2TC10FX - Specifications
| Application | Wire Termination |
|---|---|
| Catalog Number | YAZV6C2TC10FX |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Number of Pad Holes | 2 |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| Type | Long Barrel, Skive |
| UPC | 781810228104 |
| UPC 14 Digit GTIN | 00781810228104 |
