Brand: Burndy
|
SKU:
YAZV6C2TC14FX90

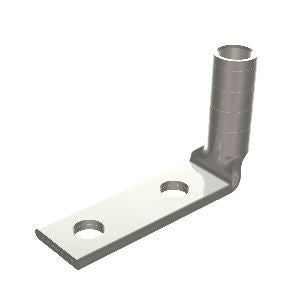

Burndy YAZV6C2TC14FX90 | 25019414 | Lug, Compression, Copper, 1/4 Inch, 2 Holes, 6 AWG, Blue
Regular price
$11.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YAZV6C2TC14FX90 | 25019414 | Lug, Compression, Copper, 1/4 I...
Regular price
$11.45
Unit price
Brand: Burndy
|
SKU:
YAZV6C2TC14FX90
Regular price
$11.45
Unit price
Shipping calculated at checkout.
Description
Description
Burndy YAZV6C2TC14FX90 | 25019414 | Lug, Compression, Copper, 1/4 Inch, 2 Holes, 6 AWG, Blue
Burndy - YAZV6C2TC14FX90 | 25019414 - Features
- Internally beveled barrel end for easy cable insertion, connector clearly marked with wire size and type, die index and color coding, markings provide for inspectability along with ease of determining proper tooling recommended.
- Compression Terminal
- Tongue Angle: 90 Degree
- Length: 1.52 Inch
- Barrel Style: Skived
- Bolt Hole Size: 0.27 Inch
- Stud Size: 1/4 Inch
- Barrel Type: Long
- Thickness: 0.08 Inch
- B Length: 0.75 Inch
- Pad Width: 0.48 InchHole to Hole Distance: 0.62 Inch
- Strip
- Length: 1-3/16 Inch
- Wire Size: 6 AWG Copper Stranded
- Type Of Plating: Tin
- Color Code: Blue
- Index Number: 7, 374
- Material: Copper
- Voltage Rating: 600 Volt - 35 Kilo-Volt
Specifications
Specifications
Burndy - YAZV6C2TC14FX90 | 25019414 - Product Categories
- Shop by Manufacturer/Burndy
- Hardware and Supplies
- Electrical Supplies
- Power Connectors and Lugs
- Wiring Connectors
- Connectors and Lugs, Compression
- Cable Lugs
Burndy - YAZV6C2TC14FX90 | 25019414 - Specifications
| Barrel | Long |
|---|---|
| Bolt Hole | 1/4 Inch |
| Gauge | 6 AWG |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Flex Compression |
| UNSPSC Code | 39121400 |
| Country of Origin | United States - Subject to change |
| Type | Compression Terminal |
| Material | Copper, Tin-plated |
| Voltage | 600V-35 kV |
| Barrel Length/?Type | Long |
| Stud Hole Spacing | 0.62 in Space |
| Conductor Type | Copper |
| Conductor Size - Code | 6 AWG |
| Conductor Size - Flex | 6 Flex |
