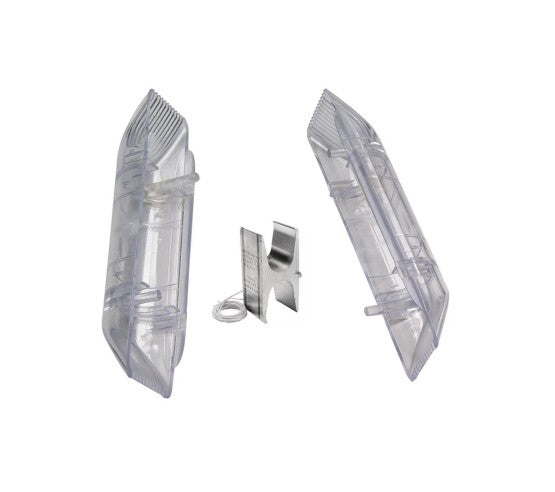

Burndy YH2C2CWCC | Copper Compression H-Tap with Clear Cover, 2-8 AWG Run and Tap
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YH2C2CWCC | Copper Compression H-Tap with Clear Cover, 2-8 A...
Description
Description
Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 2 AWG-2 AWG Class B,C, 2 AWG-6 AWG Class B,C, 2 AWG-6 AWG Class G,H,I,DLO, 8 AWG Class I, DLO, Tap 1: 2 AWG-2 AWG Class B,C, 2 AWG-6 AWG Class B,C, 2 AWG-6 AWG Class G,H,I,DLO, 8 AWG Class I, DLO, Tap 2: 8 AWG-14 AWG Class B,C, 8 AWG-14 AWG Class G,H,I,DLO, 8 AWG Class K Class I, DLO, Tap 3: 8 AWG-14 AWG Class B,C, 8 AWG-14 AWG Class G,H,I,DLO, 8 AWG Class K, kitted with clear cover. See sale drawing for metric wire size accommodates.
Burndy - YH2C2CWCC - Features
- Uninsulated compression H-tap connector, tin-plated
- Designs with more than one tap wire groove require installers to utilize a minimum of one Main (Run) and one Tap groove, other grooves can be left empty
- 'Third Hand' is a string provided with the H-tap connector and is used to wrap the wire while being inserted into the run and tap grooves
- H-tap connectors can be purchased separately or kitted with covers
- YH is connector sold separately without cover
- YH-WC is kitted H-tap connector and black cover
- YH-WCC is kitted H-tap connector and clear cover
Specifications
Specifications
Burndy - YH2C2CWCC - Specifications
| Application | Wire Tap |
|---|---|
| Catalog Number | YH2C2CWCC |
| Color Code | Brown |
| Connector Type | H-TAP W/CLR COVER |
| Die Index | C |
| Finish Type | Tin-Plated |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | CRIMPIT |
| Temperature Rating | 194 |
| Trade Name | CRIMPIT™ |
| Type | Compression Taps |
| UPC | 781810436455 |
| UPC 14 Digit GTIN | 00781810436455 |
