Burndy YH4429 | Compression H-Tap Connector
Regular price
$58.39
Unit price
Brand: Burndy
|
SKU:
YH4429
Regular price
$58.39
Unit price
Description
Description

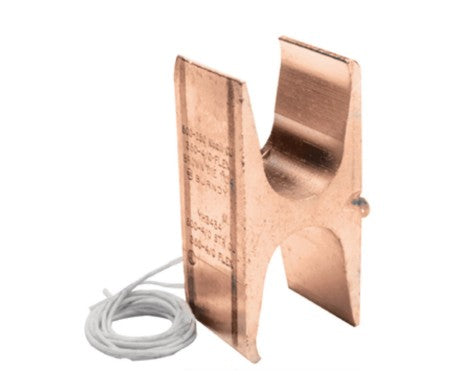

Burndy YH4429 | Compression H-Tap Connector
Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 1000 KCMIL-750 KCMIL Class B,C, 777 KCMIL-535 KCMIL DLO, 750-500 KCMIL Class I, Tap 1: 250 KCMIL-2 AWG Class B,C, 4/0 AWG-2 AWG Class I, DLO. See sale drawing for metric wire size accommodates.
Burndy - YH4429 - Features
- Uninsulated compression H-tap connector, tin-plated
- Designs with more than one tap wire groove require installers to utilize a minimum of one Main (Run) and one Tap groove, other grooves can be left empty
- 'Third Hand' is a string provided with the H-tap connector and is used to wrap the wire while being inserted into the run and tap grooves
- H-tap connectors can be purchased separately or kitted with covers
- YH is connector sold separately without cover
- YH-WC is kitted H-tap connector and black cover
- YH-WCC is kitted H-tap connector and clear cover
Specifications
Specifications
Burndy - YH4429 - Specifications
| Application | Wire Tap |
|---|---|
| Catalog Number | YH4429 |
| Color Code | Yellow |
| Connector Type | H-TAP |
| Die Index | KR |
| Finish Type | Tin-Plated |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Trade Name | CRIMPIT™ |
| Type | Compression Taps |
| UPC | 781810041802 |
| UPC 14 Digit GTIN | 00781810041802 |
