Brand: Burndy
|
SKU:
YS25A1

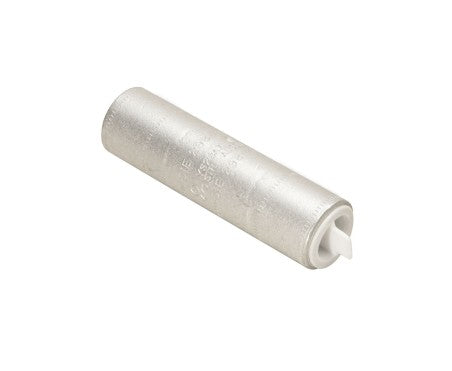

Burndy YS25A1 | Aluminum Compression Splice, 1/0 AWG, AL9CU
Regular price
$22.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Burndy YS25A1 | Aluminum Compression Splice, 1/0 AWG, AL9CU
Regular price
$22.14
Unit price
Description
Description
Burndy YS25A1 | Aluminum Compression Splice, 1/0 AWG, AL9CU
AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13 oxide inhibitor, End Cap, UL/CSA, 90°C, Up to 35kV, Color Code, Die Index.
Burndy - YS25A1 - Features
- Aluminum splices are dual rated to accommodate both copper and aluminum wire
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Clearly marked with wire size, die index, color code, and crimp location bands
- Factory pre-filled with PENETROX™ Type A13 oxide inhibitor
- Color coded end caps inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
Specifications
Specifications
Burndy - YS25A1 - Specifications
| Application | Wire Splice |
|---|---|
| Catalog Number | YS25A1 |
| Color Code | Tan |
| Connector Type | DUAL RATED |
| Die Index | 296 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Aluminum |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLINK |
| Temperature Rating | 194 |
| Trade Name | HYLINK™ |
| Type | YS-A, Standard Barrel |
| UPC | 781810757055 |
| UPC 14 Digit GTIN | 00781810757055 |
