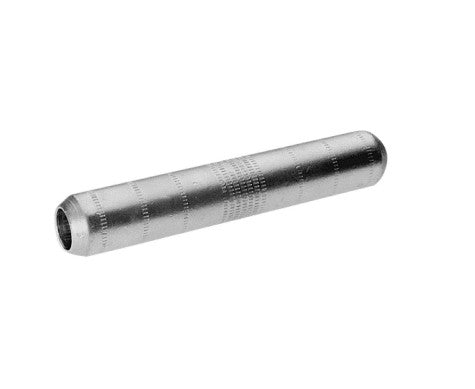

Burndy YS28T | Copper Compression Splice, 4/0 AWG, Tapered End
Regular price
$70.11
Unit price
Brand: Burndy
|
SKU:
YS28T
Regular price
$70.11
Unit price
Description
Description
Burndy YS28T | Copper Compression Splice, 4/0 AWG, Tapered End
4/0 AWG CU, Tapered End, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, PURPLE Color Code, 15 Die Index.
Burndy - YS28T - Features
- Copper seamless barrel designed with tapered ends per EEI Standard TD160, for use on voltages 5kV through 35kV, this aids in preventing corona emission and simplifies taping for lower installation cost
- Barrel also features internal chamfer at wire entry to ensure smooth insertion of wire, preventing possible damage of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Specifications
Specifications
Burndy - YS28T - Specifications
| Application | T-Connector |
|---|---|
| Catalog Number | YS28T |
| Color Code | Purple |
| Connector Type | T-CONNECTOR |
| Die Index | 15 |
| Finish Type | Tin-Plated |
| Material | Copper |
| Sub Brand | HYLINK |
| Trade Name | HYLINK™ |
| Type | YS-T, High Voltage, Standard Barrel |
| UPC | 781810001226 |
