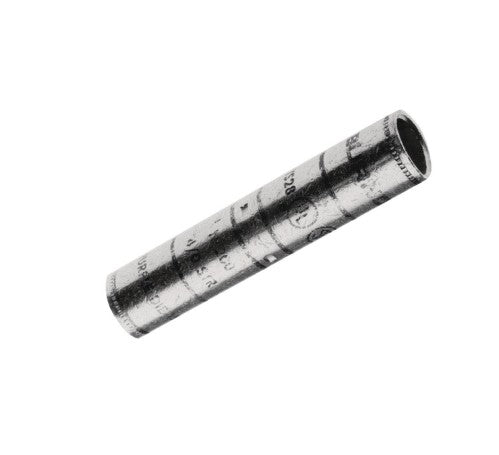

Burndy YS5C | Compression Splice, 5 AWG, Long Barrel
Regular price
$11.34
Unit price
Brand: Burndy
|
SKU:
YS5C
Regular price
$11.34
Unit price
Description
Description
Burndy YS5C | Compression Splice, 5 AWG, Long Barrel
5 AWG CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 7 or 374 Die Index.
Burndy - YS5C - Features
- Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors clearly marked with color coding
Specifications
Specifications
Burndy - YS5C - Specifications
| Application | Wire Splice |
|---|---|
| Catalog Number | YS5C |
| Color Code | Blue |
| Connector Type | LONG BARREL |
| Die Index | 7 |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Trade Name | HYLINK™ |
| UPC | 781810507308 |
| UPC 14 Digit GTIN | 00781810507308 |
