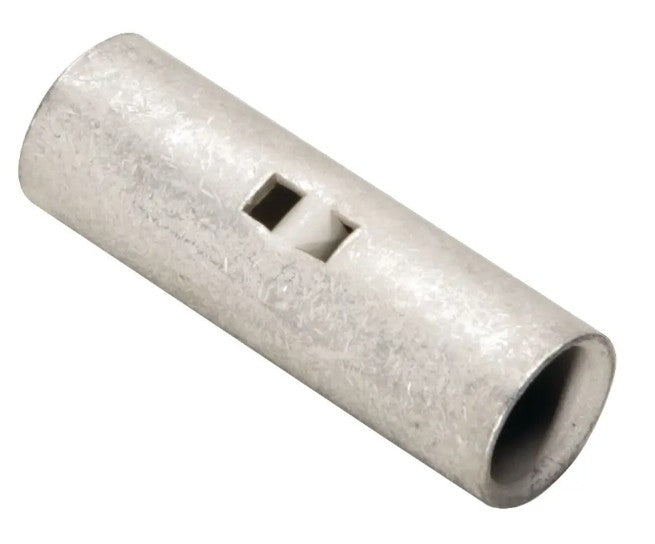

Burndy YSV10 | Uninsulated Splice, 12-10 AWG
Regular price
$1.27
Unit price
Brand: Burndy
|
SKU:
990482
Regular price
$1.27
Unit price
Description
Description
Burndy YSV10 | Uninsulated Splice, 12-10 AWG
Copper Butt Splice, w/ Inspection Hole, 12-10 AWG, 0.75" Splice Length, Tin Plated.
Burndy - YSV10 - Features
- Manufactured from seamless tubing
- High quality design with no seams to split
- Electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
- Electro-tin plating provides durable long lasting resistance to corrosion
- Positive center wire stops for proper dept of wire insertion
- Marked with wire size providing easy wire size identification
- HYLINK splice connectors feature inspection holes providing easy visual inspection of proper wire insertion
Specifications
Specifications
Burndy - YSV10 - Specifications
| Application | For All Heavy Duty Industrial And General Purpose Applications |
|---|---|
| Catalog Number | YSV10 |
| Connector Type | Seamless Butt Splice |
| Die Index | 36 |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Yes |
| Plating Type | Tin |
| Sub Brand | HYLINK |
| Temperature Rating | 90 |
| Trade Name | HYLINK™ |
| Type | Splice |
| UPC | 781810806050 |
| UPC 14 Digit GTIN | 00781810806050 |
