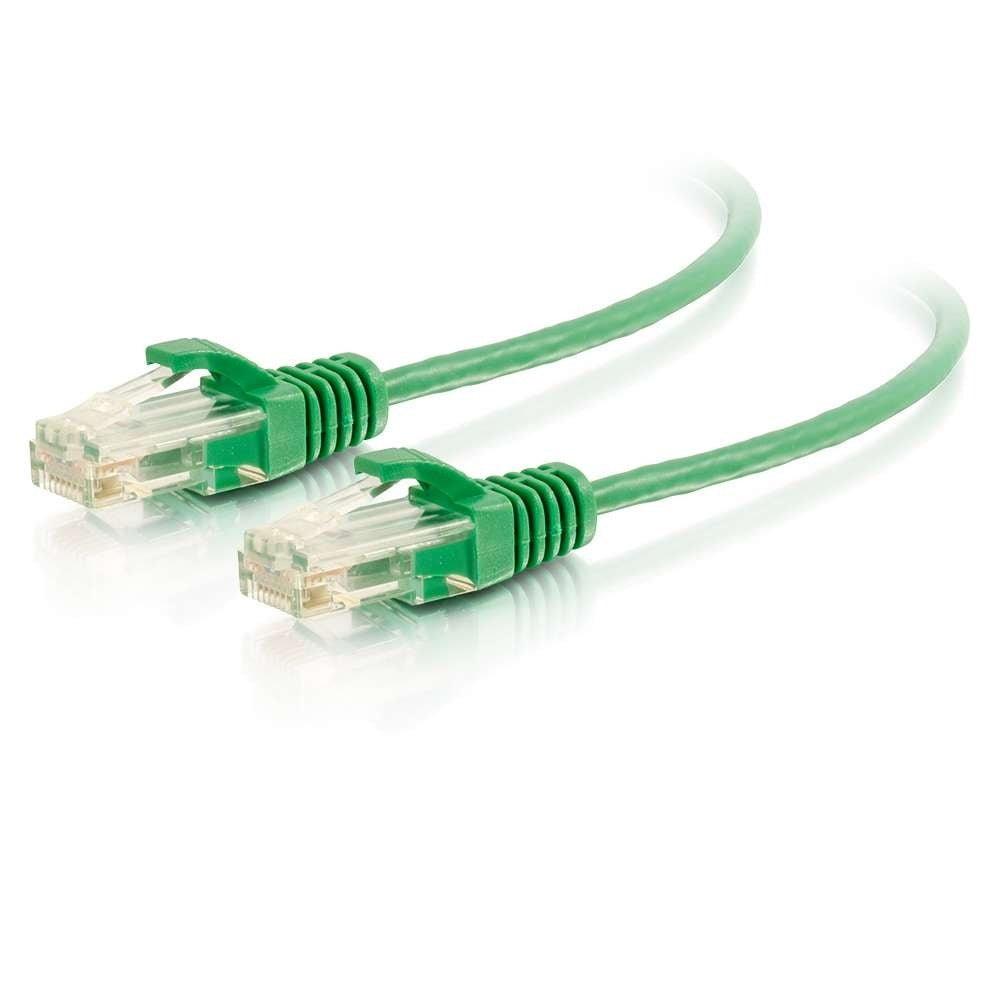

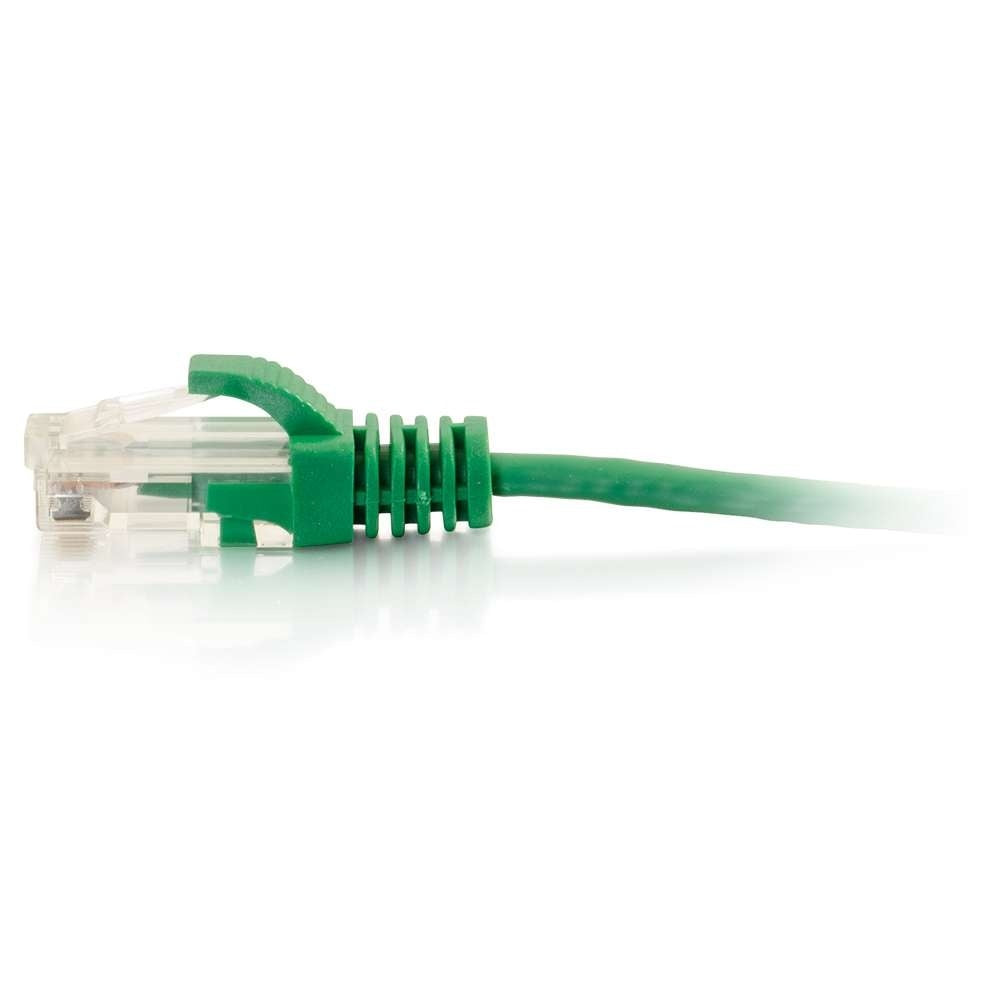

C2G C2G02223 | 6ft (1.8m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable - Green
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
C2G - C2G02223 - Features
- 36% reduction in diameter compared to standard Cat5e cables
- Snagless connector design
- Meets the ANSI/TIA-568-C.2 standard for Patch Cord Performance
- 28AWG construction
Specifications
Specifications
C2G - C2G02223 - Product Categories
- Audio and Visual
- AV Cable and Connectors
- AV Cable Assemblies
C2G - C2G02223 - Specifications
| Manufacturer Part Number | C2G02223 |
|---|---|
| Brand Name | C2G (Legrand) |
| Color | Green |
| Type | Cable |
| Application Sector | Commercial, Industrial, Residential |
| Product Line | C2G |
| Country Of Origin | Vietnam |
| Features | PoE (Power Over Ethernet), Stranded Conductors, Stranded Copper |
| Warranty Type | Lifetime |
| UPC Number | 757120022237 |
| Product Depth US | 6.0 in |
| Product Height US | 0.5 in |
| Cable Length | 6 ft |
| Product Length US | 6.0 FT |
| Product Width US | 10.0 in |
| Product Weight US | 0.093 lb |
| CE Certified | Yes |
| REACH Compliant | Yes |
| Energy Savings | No |
| RoHS Compliant | Yes |
| Bandwidth | 500 mHz |
| Cable Diameter | 3.8 mm |
| Bend Radius | 15.2 mm |
| Connector Type | Slim |
| Cable Type | Ethernet Patch Cable |
| Category Performance Rating | Cat6 |
| Conductor | 4-Pair Twisted |
| Conductor Material | Copper |
| Connector Material | Gold |
| Data Transfer Rate | 10 Gbps |
| Indoor/Outdoor | Indoor |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Jacket Rating | Standard / Non-Rated |
| Jacket Application | Standard Non-Rated |
| Operating Temperature | -20°-80°C |
| Operating Temperature Max | 80 °C |
| Operating Temperature Min | -20 °C |
| Operating Humidity | 10-80% RH (Non-Condensing) |
| Plating Specification | 50 µ in Gold |
| Shield Type | UTP |
| Shielded/Unshielded | Unshielded |
| Storage Temperature | -20° - 80° C |
| Voltage | 30.0 V |
| Wire Gauge | 28 AWG |
| UNSPSC Code | 52161500 |
