Brand: Legrand | SKU: 10539685

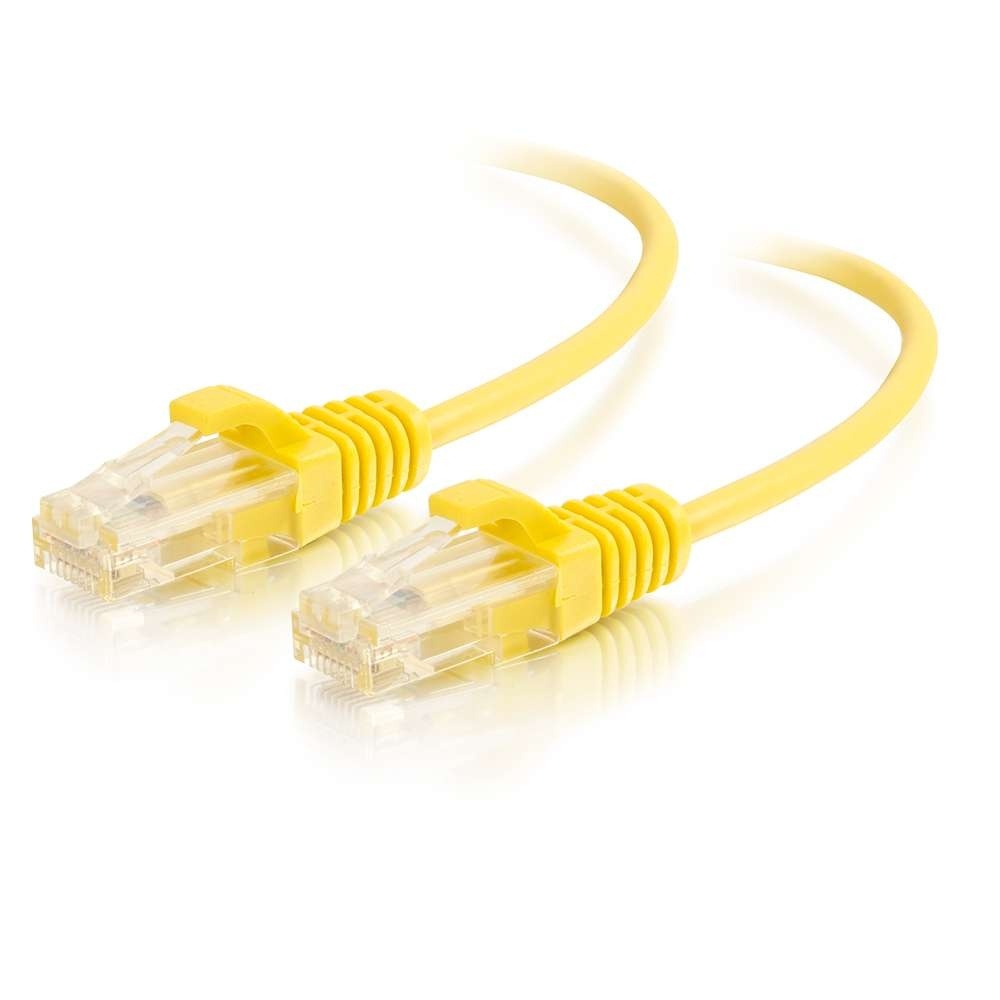

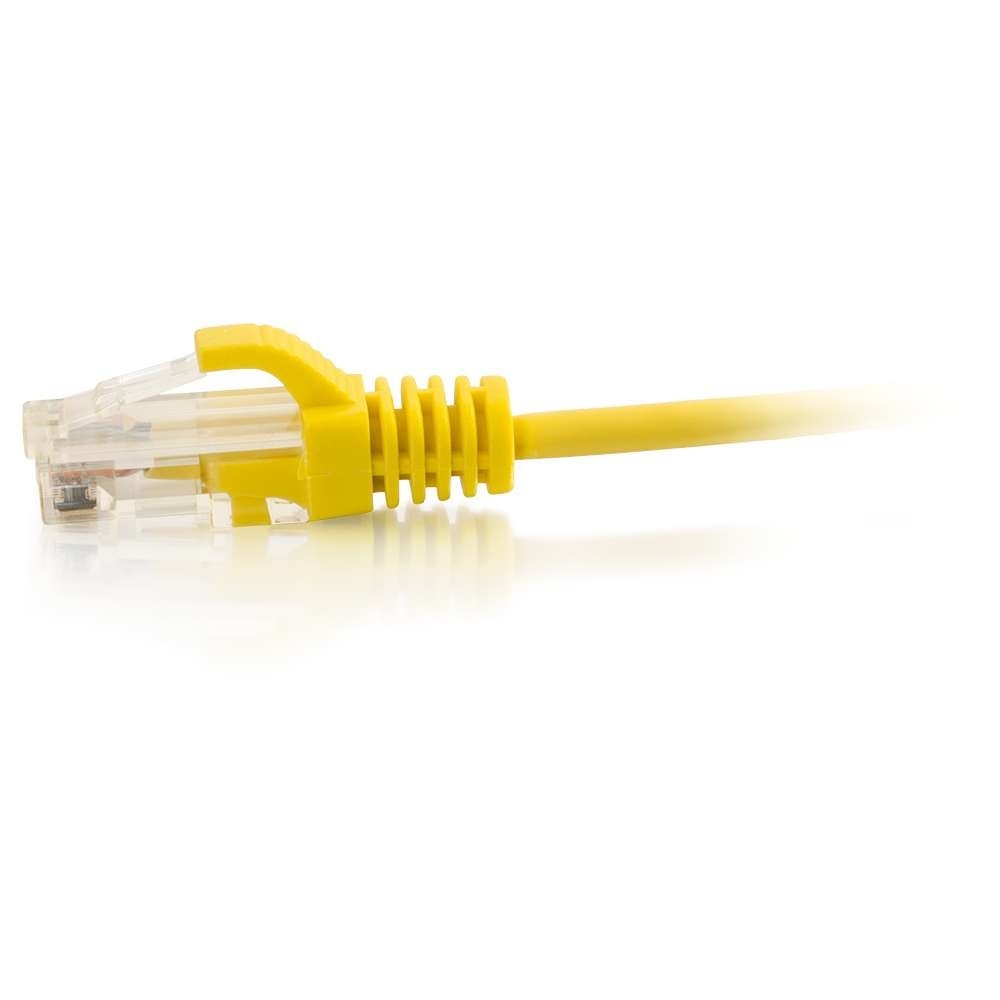

C2G C2G02246 | 25ft (7.62m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable - Yellow

Regular price $17.39
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

C2G C2G02246 | 25ft (7.62m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable - Yellow

The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

C2G - C2G02246 - Features

  • 36% reduction in diameter compared to standard Cat5e cables
  • Snagless connector design
  • Meets the ANSI/TIA-568-C.2 standard for Patch Cord Performance
  • 28AWG construction

Specifications

C2G - C2G02246 - Product Categories

  • Audio and Visual
  • AV Cable and Connectors
  • AV Cable Assemblies

C2G - C2G02246 - Specifications

Manufacturer Part NumberC2G02246
Brand NameC2G (Legrand)
ColorYellow
TypeCable
Application SectorCommercial, Industrial, Residential
Product LineC2G
Country Of OriginVietnam
FeaturesPoE (Power Over Ethernet), Stranded Conductors, Stranded Copper
Warranty TypeLifetime
UPC Number757120022466
Product Depth US8.0 in
Product Height US0.5 in
Cable Length25 ft
Product Length US25.0 FT
Product Width US12.5 in
Product Weight US0.309 lb
CE CertifiedYes
REACH CompliantYes
Energy SavingsNo
RoHS CompliantYes
Bandwidth500 mHz
Cable Diameter3.8 mm
Bend Radius15.2 mm
Connector TypeSlim
Cable TypeEthernet Patch Cable
Category Performance RatingCat6
Conductor4-Pair Twisted
Conductor MaterialCopper
Connector MaterialGold
Data Transfer Rate10 Gbps
Indoor/OutdoorIndoor
Insulation MaterialFMPE (Foam Polyethylene)
Jacket MaterialPVC (Polyvinyl Chloride)
Jacket RatingStandard / Non-Rated
Jacket ApplicationStandard Non-Rated
Operating Temperature-20°-80°C
Operating Temperature Max80 °C
Operating Temperature Min-20 °C
Operating Humidity10-80% RH (Non-Condensing)
Plating Specification50 µ in Gold
Shield TypeUTP
Shielded/UnshieldedUnshielded
Storage Temperature-20° - 80° C
Voltage30.0 V
Wire Gauge28 AWG
UNSPSC Code52161500
