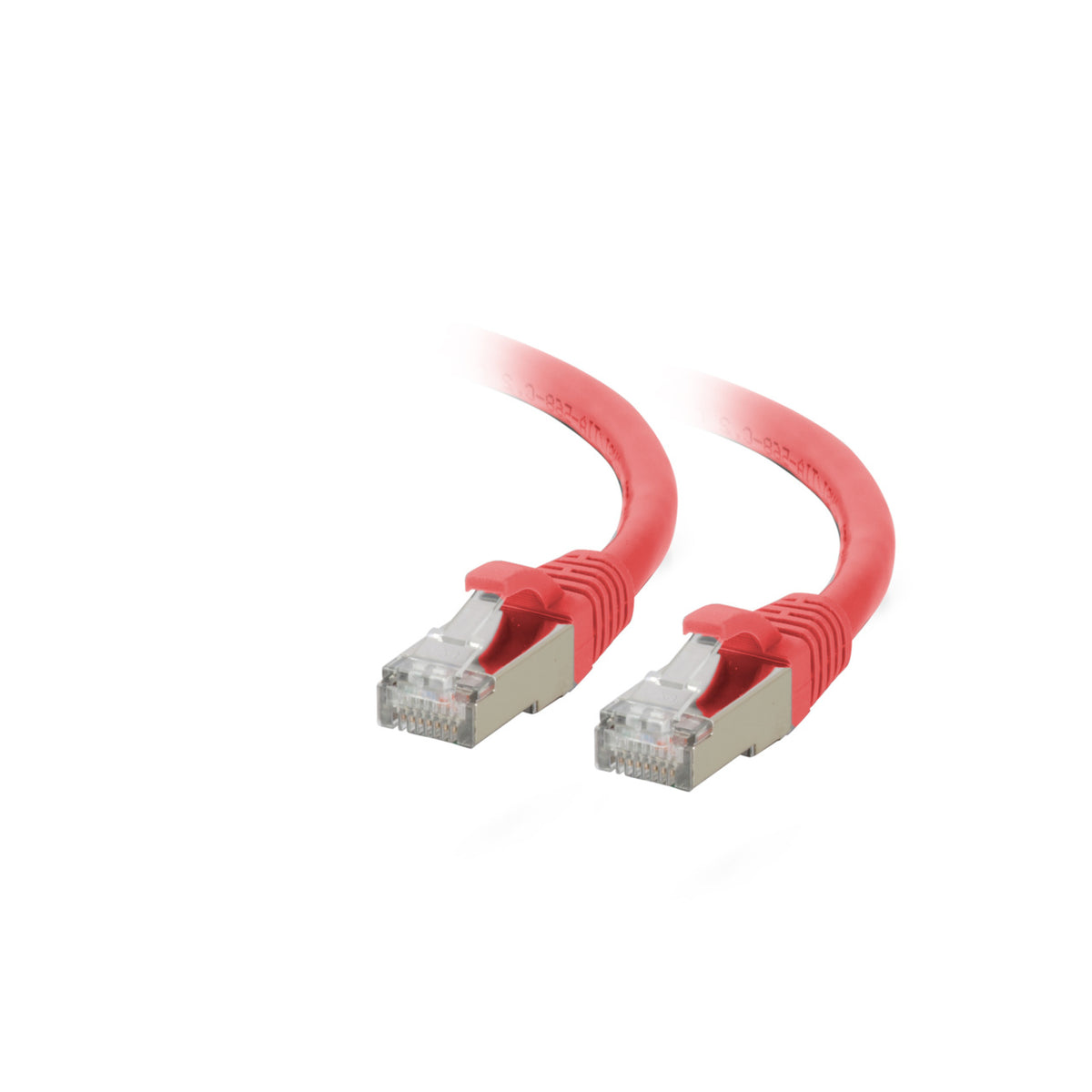

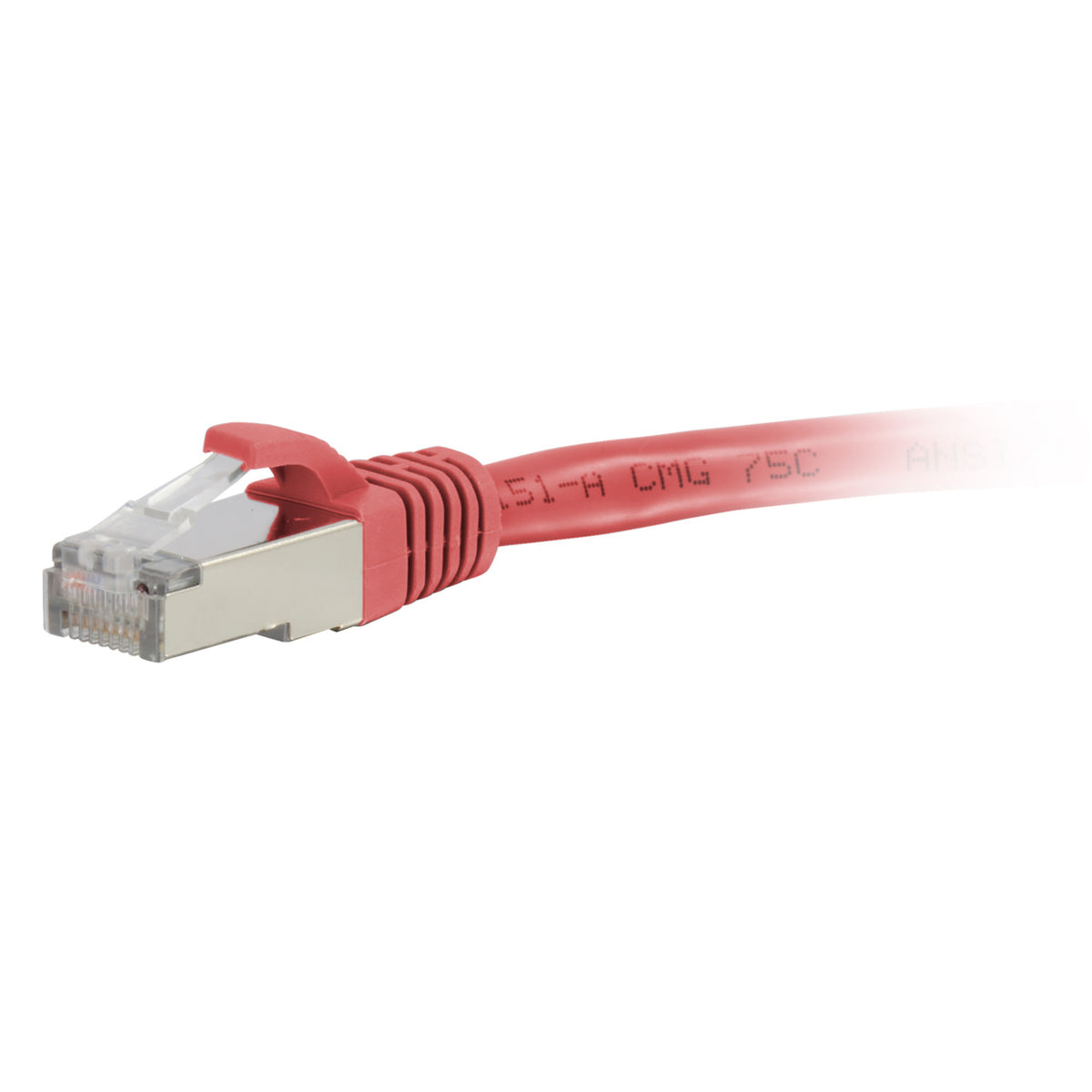

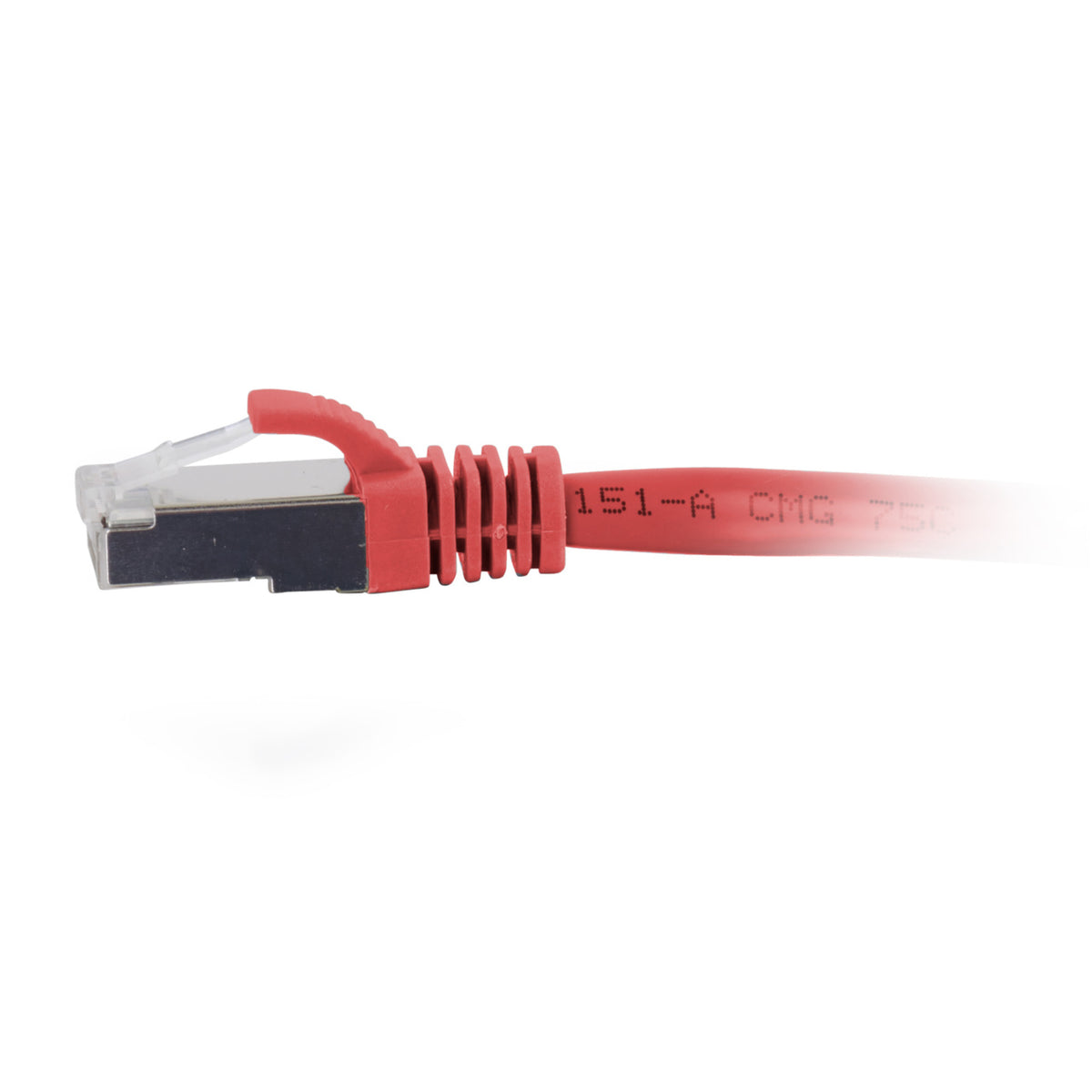

C2G C2G07366 | 7ft (2.1m) Cat6a Snagless Shielded (STP) Ethernet Network Patch Cable - Red
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
C2G C2G07366 | 7ft (2.1m) Cat6a Snagless Shielded (STP) Ethernet Ne...
Description
Description
This Snagless Shielded Cat6a patch cable is ideal for use with 10GBase-T ports and equipment, such as network adapters, hubs, switches, routers, DSL/cable modems and patch panels, and will protect a high speed 10 Gigabit network connection from noise and electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
C2G - C2G07366 - Features
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Supports 10 Gigabit networks up to 328ft for fast data transmission and maximum performance
- Meets the ANSI/TIA-568-C.2 Cat6a requirements for supporting a wide variety of applications
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Available in a variety of colors to color-code a network
Specifications
Specifications
C2G - C2G07366 - Product Categories
- Audio and Visual
- AV Cable and Connectors
- AV Cable Assemblies
C2G - C2G07366 - Specifications
| Manufacturer Part Number | C2G07366 |
|---|---|
| Brand Name | C2G (Legrand) |
| Color | Red |
| Type | Cable |
| Application Sector | Commercial, Industrial, Residential |
| Product Line | C2G |
| Country Of Origin | Vietnam |
| Features | PoE (Power Over Ethernet), Stranded Conductors, Stranded Copper |
| Warranty Type | Lifetime |
| UPC Number | 757120073666 |
| Product Depth US | 6.0 in |
| Product Height US | 0.5 in |
| Cable Length | 7 ft |
| Product Length US | 7.0 FT |
| Product Width US | 10.0 in |
| Product Weight US | 0.208 lb |
| CE Certified | Yes |
| REACH Compliant | Yes |
| Energy Savings | No |
| RoHS Compliant | Yes |
| Bandwidth | 500 mHz |
| Cable Diameter | 6.2 mm |
| Bend Radius | 49.6 mm |
| Connector Type | Booted, Snagless |
| Cable Type | Ethernet Patch Cable |
| Category Performance Rating | Cat6a |
| Conductor | 4-Pair Twisted |
| Connector Material | Gold |
| Data Transfer Rate | 10 Gbps |
| Indoor/Outdoor | Indoor |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Jacket Rating | Standard / Non-Rated |
| Jacket Application | Standard Non-Rated |
| Operating Temperature | -20°-80°C |
| Operating Temperature Max | 80 °C |
| Operating Temperature Min | -20 °C |
| Operating Humidity | 10-80% RH (Non-Condensing) |
| Storage Humidity | 10-80% RH (Non-Condensing) |
| Plating Specification | 50 µ in Gold |
| Shield Type | STP |
| Shielded/Unshielded | Shielded |
| Storage Temperature | -20° - 80° C |
| Voltage | 30.0 V |
| Wire Gauge | 26 AWG |
| UNSPSC Code | 52161500 |
