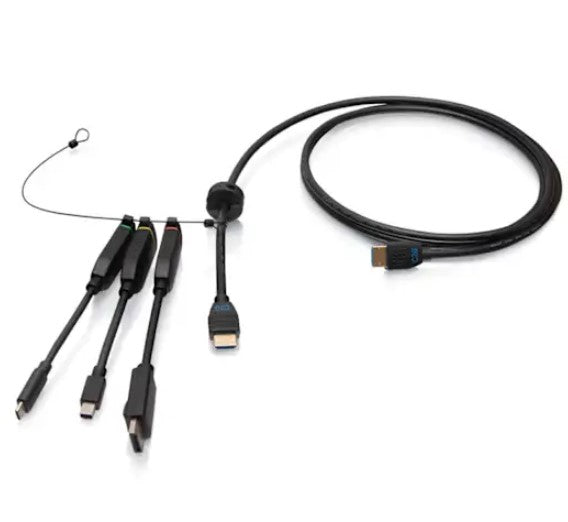

C2G C2G4200363 | 6ft 4K HDMI Premium Cable and Universal Dongle Adapter Ring
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
C2G C2G4200363 | 6ft 4K HDMI Premium Cable and Universal Dongle Ada...
Description
Description
The Patented (US 11,444,419 B2) Universal 4K HDMI Dongle Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect.
Choose from the dropdown boxes on the right hand side to browse and configure the perfect combination of adapters! Customized pull tabs are available for a minimum purchase quantity of 250 units. Don’t see what you’re looking for, please reach out to our custom team to gain additional assistance.
Specifications
Specifications
C2G - C2G4200363 - Specifications
| Supports HDMI Resolutions up to | 4K 60Hz, 4:4:4, 18Gbps |
|---|---|
| Jacket Color | Black, PVC Molding |

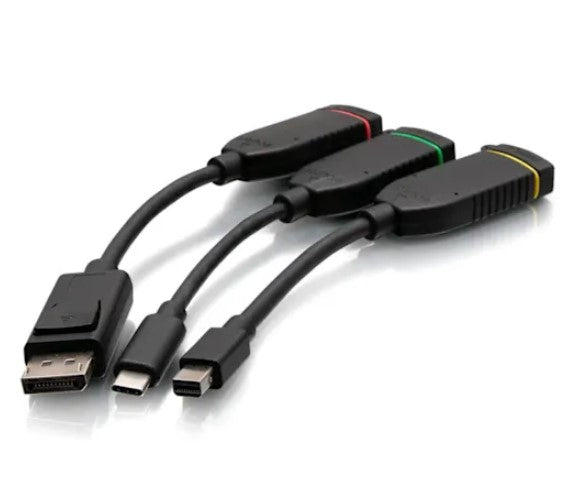

| USB Type-C to HDMI Dongle | 100% Functional Test at 4K/60Hz/4:4:4 |
| DisplayPort to HDMI Dongle | 100% Functional Test at 4K/30Hz |
| Mini DisplayPort to HDMI Dongle | 100% Functional Test at 4K/30Hz |
| Rating | Temp 80°C; Voltage 30V |
| Dielectric Strength | AC 500V/1 Minute No Breakdown |
| Operating Temperature | 0°C - 40°C (0% - 90%RH) |
| Storage Temperature | -10°C - 60°C (0% - 90%RH) |
| mDP/DP Minimum Bend Radius | R52mm |
| USB-C Minimum Bend Radius | R45mm |
| Cables Jacket Rating | VW-1 |
| Tensile Strength | Unaged: 1500PSI Min, Aged: 70% Min |
| HDMI Female | Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black with PCB, Shell: SPCC, Gold Plated |
| USB Type-C Male (Green Band) | Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated |
| DisplayPort Male (Red Band) | Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches) |
| Mini DisplayPort Male (Yellow Band) | Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated |
| All Hoods | Molded Black PVC |
| PC Eyelet | 17.8x4.7x2.6mm, Black |
| Pull Tab | 80x25x2mm, Material: Polyester, Black Background, White Text, with Black Eyelet |
| Universal Mounting Bracket | 85x65x1.2mm, Material: C.R.S. Rigidity: 1/4H, Color: Black |
| Cable Length | 6 ft (1.8 m) |
| Operating Humidity Max | 90% RH |
| Operating Humidity Min | 0% RH |
| Storage Humidity Max | 90% RH |
| Storage Humidity Min | 0% RH |
| Color | Black |
| Connector 1 | (3) HDMI Female |
| Connector 2 | (1) DisplayPort Male, (1) Mini DisplayPort Male, (1) USB-C Male |
| DisplayPort to HDMI Adapter | Yes |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Mini DisplayPort to HDMI Adapter | Yes |
| USB-C to HDMI Adapter | Yes |
| Video Resolution | 4K @ 60Hz |
| Certifications | nan NDAA 889 Prop 65 REACH RoHS TSCA |
| Data Transfer Rate | 18 GBPS |
| Patent Number | 419 B2, 444, US 11 |
| Warranty | Lifetime |
