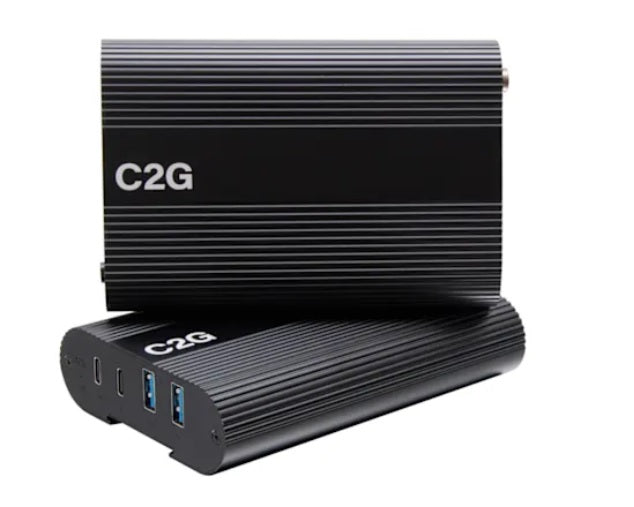

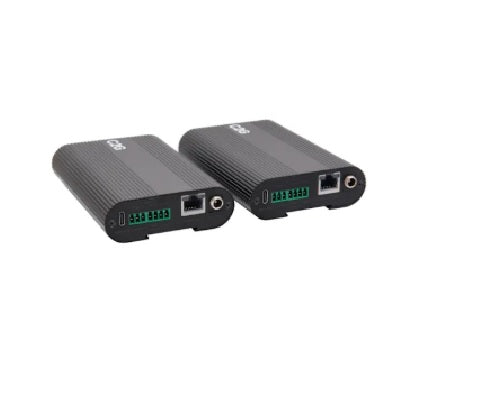

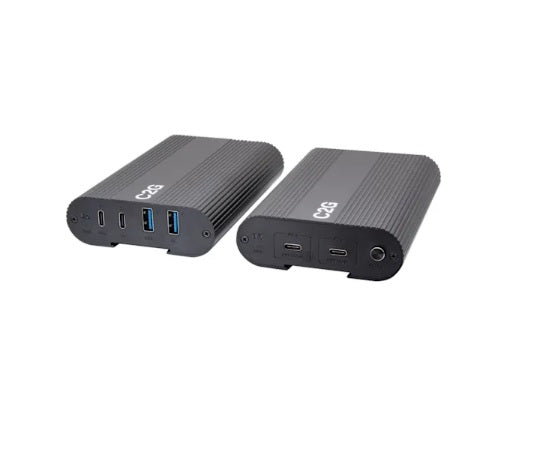

C2G C2G54262 | Superbooster 2X4 USB Over Cat6a Extender Switch
Description
Description
The C2G Superbooster 2x4 USB Extender Switch offers outstanding performance, enabling the transmission of USB 3.2 Gen 1 signals at speeds up to 5Gbps over distances of up to 100m (328ft) through a single CAT6a U/FTP cable. Designed for flexibility and ease of use, it supports input switching and is backward compatible with USB 2.0 and 1.1, making it ideal for a variety of devices. This solution is perfect for applications in conference rooms, corporate spaces, auditoriums, and huddle rooms, where reliable, long-distance USB connectivity is essential for seamless collaboration. It’s an excellent choice for connecting USB peripherals such as webcams, PTZ cameras, keyboards, mice, USB microphones, flash drives, printers, scanners, and touch panel displays.
C2G - C2G54262 - Features
- TAA Compliant
- Extends USB 3.2 Gen 1 data signal up to 328ft (100m) over Cat6a U/FTP cable
- Data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Isochronous and bulk data transfer protocols
- Supports auto switching (USB 5V detection) and manual switching modes on the transmitter end
- Supports RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Plug and play – no drivers, downloads, or software required
- Backed by a 5-year warranty
Specifications
Specifications
C2G - C2G54262 - Specifications
| Cable Length | 4.82 in (12.2 cm) |
|---|---|
| Height | Transmitter: 1.1" (2.8cm), Receiver: 1.1" (2.8cm) |
| Max Distance Support | 100m |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Temperature Max | 104 Fahrenheit (40 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Shipping Weight | 1.08 lbs (0.5 kg) |
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | Black |
| Connector 1 | (1) DC Power Plug, (1) RJ-45 Female, (1) USB-C Female |
| Connector 2 | (1) DC Power Plug, (1) RJ-45 Female, (2) USB-A Female, (2) USB-C Female |
| Federal Ops Country of Origin | Taiwan |
| Material | Aluminum |
| Number of Ports | 4 |
| Power Supply | AC Adapter |
| Product Type | Extender |
| Signal Type | Bidirectional |
| UPC | 757120542629 |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk Number of Tiers Occupied: 2 |
| TAA Compliant | Yes |
| Technology Specifications | USB 3.2 |
| Certifications | CE FCC Prop 65 REACH RoHS TAA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
