C2G C2G54263 | 2x4 USB-C Switch
Regular price
$395.96
Unit price
Brand: Legrand
|
SKU:
10503073
Regular price
$395.96
Unit price
Description
Description

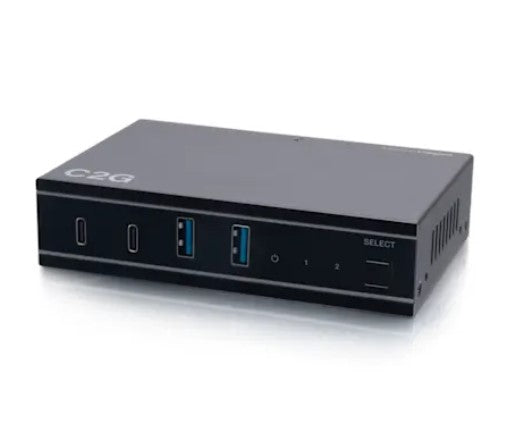

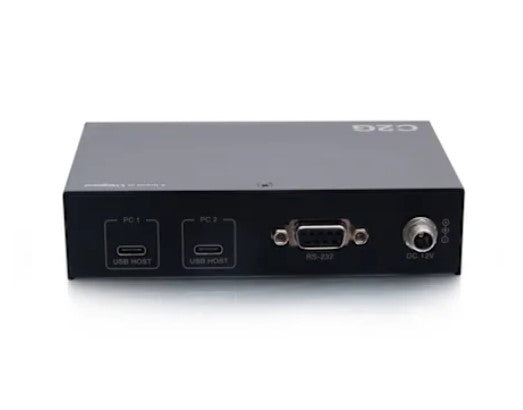

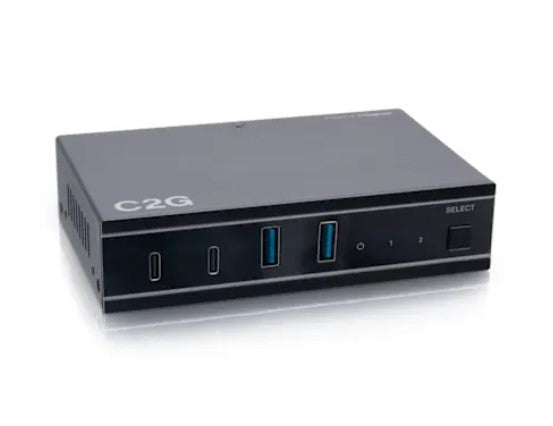

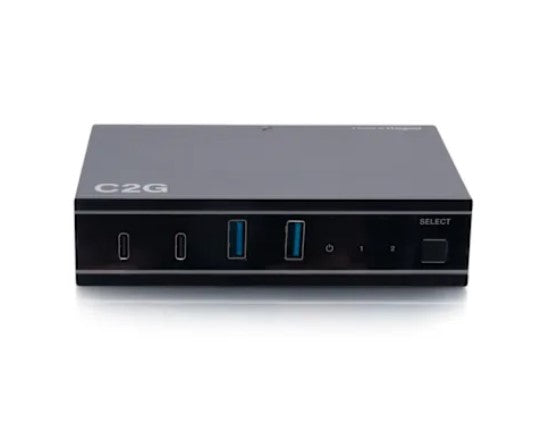

C2G C2G54263 | 2x4 USB-C Switch
For switching between two USB-C sources and two USB-C or USB-A devices, this device supports automatic switching by detecting a new source or manual switching via the front panel button or RS-232 API commands. It supports USB 3.2 Gen 1 with data transfer rates up to 5 Gbps and is compatible with a wide range of USB peripherals, including webcams, PTZ cameras, keyboards, mice, printers, displays, and more. This plug-and-play device is versatile and easy to use.
C2G - C2G54263 - Features
- Two USB-C ports for host PC connection
- Two USB-C ports and two USB-A ports for connecting devices
- Supports USB 3.2 Gen 1 with data transfer speeds up to 5Gbps
- Supports auto-switching when new devices are detected or manual switching via the front panel button or RS-232 API commands
- Compatible with a broad range of USB sources and devices
Specifications
Specifications
C2G - C2G54263 - Specifications
| Operating Temperature | 32° to 104°F (0° to 40°C) |
|---|---|
| Operating Temperature Max | 104 Fahrenheit (40 Celsius) |
| Operating Temperature Min | -40 Fahrenheit (-40 Celsius) |
| Product Weight | 1.1 lbs (0.5 kg) |
| Shipping Weight | 1.4 lbs (0.6 kg) |
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | 24.8 Fahrenheit (-4 Celsius) |
| Color | Black |
| Connector 1 | (1) DC Power Plug, (2) USB-C Female, DB9 RS-232 |
| Connector 2 | (2) USB-A Female, (2) USB-C Female |
| Product Type | Switch |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk Number of Tiers Occupied: 3 |
| Technology Specifications | USB 1.0, USB 2.0, USB 3.2 |
| UPC | 757120542636 |
| Certifications | CE FCC Prop 65 REACH RoHS UKCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 3 years |
