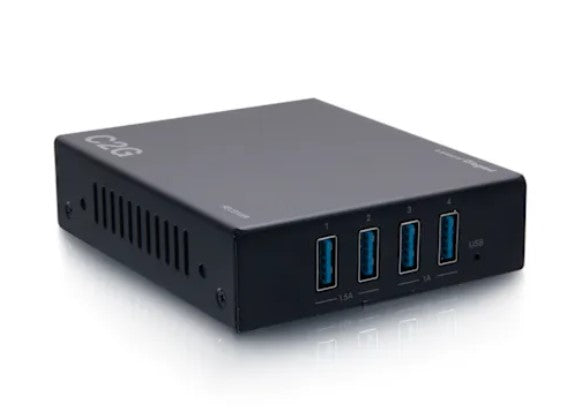

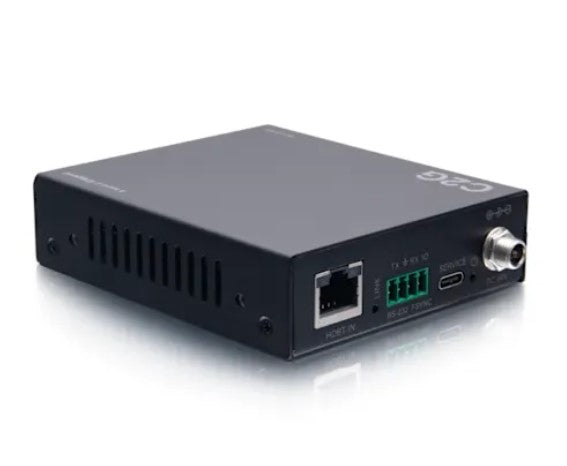

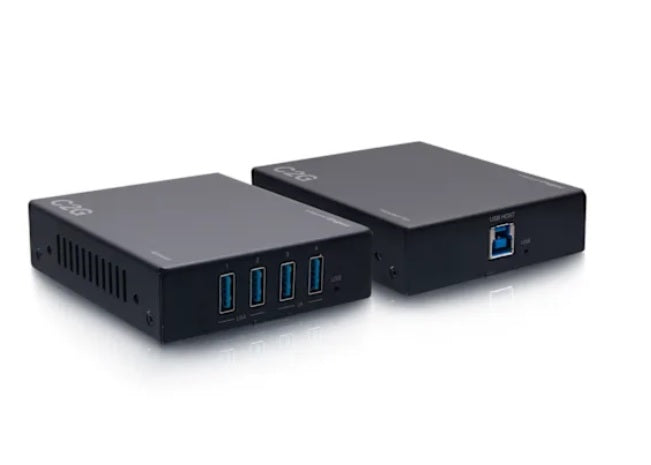

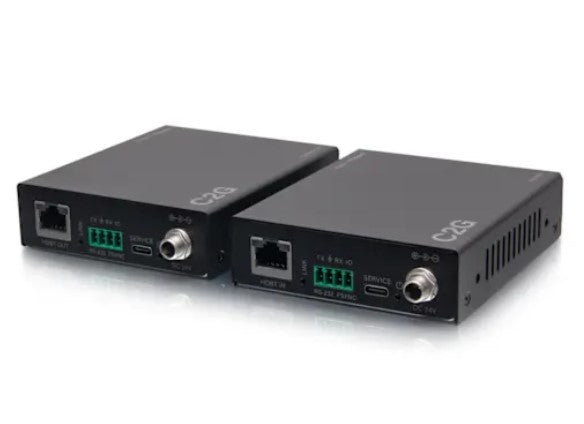

C2G C2G54265 | Superbooster 4-Port USB over Cat6a Extender Kit
Description
Description
C2G’s Superbooster 4-Port USB over Cat6a Extender Kit – USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.
No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.
This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.
C2G - C2G54265 - Features
- Extension of USB 3.0 up to 100m/328ft over CAT6a cable
- USB 3.0 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24V PoC
- Simple plug and play, no driver and setting installation required
Specifications
Specifications
C2G - C2G54265 - Specifications
| Amps | 1 Amp |
|---|---|
| Cable Length | 3.35 in (8.5 cm) |
| Height | Transmitter: 1" (2.54cm), Receiver: 1" (2.54cm) |
| Length | Receiver: 3.35" (8.5cm) Transmitter: 3.35" (8.5cm) |
| Max Distance Support | 328 ft (100 m) |
| Operating Humidity Max | 90% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 2.34 lbs (1.1 kg) |
| Storage Humidity Max | 290% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 284 Fahrenheit (140 Celsius) |
| Storage Temperature Min | -23.8 Fahrenheit (-31 Celsius) |
| Width | Transmitter: 3.94" (10cm), Receiver: 3.94" (10cm) |
| Color | Black |
| Connector 1 | (1) RJ-45 Female, (1) USB-B Female |
| Connector 2 | (1) RJ-45 Female, (1) USB-A Female |
| Product Type | Active Device, Extender, Kit |
| Signal Type | USB 3.2 Gen 1 |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk Number of Tiers Occupied: 2 |
| Technology Specifications | USB 1.1, USB 2.0, USB 3.2 |
| UPC | 757120542650 |
| Certifications | CE FCC NDAA 889 Prop 65 REACH RoHS TAA TSCA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
