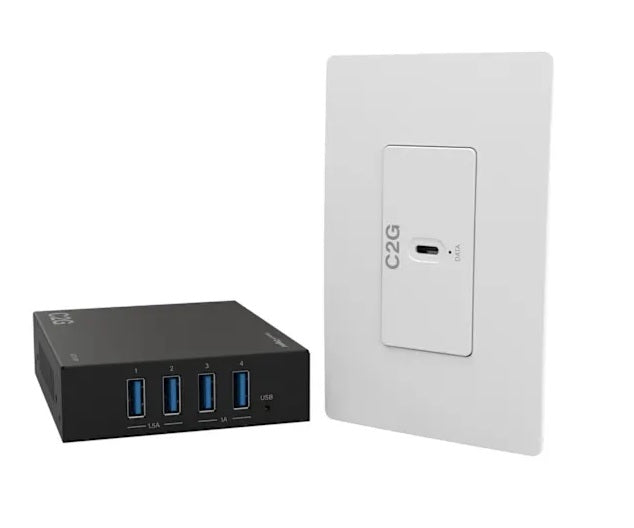

C2G C2G54269 | Superbooster 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
C2G C2G54269 | Superbooster 1-Port USB over Cat6a Wall Plate to 4-P...
Description
Description
The C2G Superbooster USB Extender Kit is designed to simultaneously extend data from USB 3.2, 2.0, and 1.1 devices up to 328 feet (100m) over a single Cat6a cable. This makes it an ideal solution for USB 3.2 conferencing cameras, interactive whiteboards, security and monitoring systems, remote storage, and other USB 3.2, 2.0, and 1.1 devices. With no need for software drivers, installation is fast and easy, thanks to its plug-and-play functionality. C2G's USB 3.2 extenders feature economical chipset technology, offering a cost-effective alternative to other USB 3.2 extenders on the market. Rigorous compatibility testing with industry-leading video conferencing cameras ensures reliability and seamless deployment, saving valuable time for AV integrators.
C2G - C2G54269 - Features
- TAA Compliant
- Extends USB 3.2 Gen 1 data signal up to 328ft (100m) over Cat6a F/FTP cable
- Data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Isochronous and bulk data transfer protocols
- Tested and proven to support leading PTZ cameras at 1080p or 4K resolutions depending on the camera
- Plug and play – no drivers, downloads, or software required
- Supports bi-directional 24V PoC
- Backed by a 5-year warranty
Specifications
Specifications
C2G - C2G54269 - Specifications
| Depth | Transmitter: 1.5" (3.85cm), Receiver: 3.94" (10cm) |
|---|---|
| Height | Transmitter: 1.5" (3.85cm), Receiver: 1" (2.54cm) |
| Length | Transmitter: 3.35" (8.5cm), Receiver: 4.2" (10.7cm) |
| Max Distance Support | 100m |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Temperature Max | 104 Fahrenheit (40 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Product Weight | 1 lbs (0.5 kg) |
| Shipping Weight | 1.15 lbs (0.5 kg) |
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Width | Transmitter: 1.7" (4.4cm), Receiver: 3.94" (10cm) |
| Color | White/Black |
| Connector 1 | (1) USB-C Female |
| Connector 2 | (1) USB-A Female |
| Federal Ops Country of Origin | Taiwan |
| Material | Aluminum, Plastic |
| Number of Ports | 4 |
| UPC | 757120542698 |
| Power Supply | AC Adapter |
| Product Type | Extender |
| Signal Type | Bidirectional |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and Bulk Number of Tiers Occupied: 2 |
| TAA Compliant | Yes |
| Technology Specifications | USB 3.2 |
| Certifications | CE FCC Prop 65 REACH RoHS TAA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
