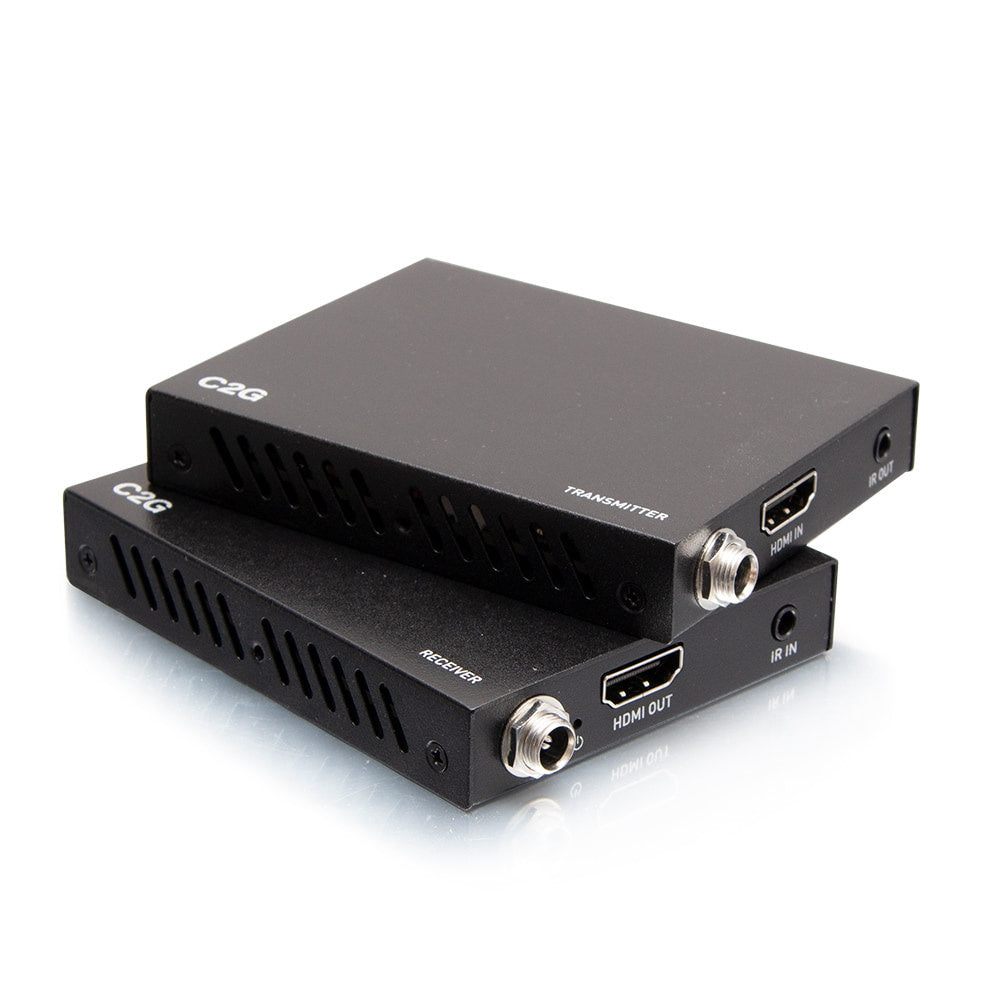

C2G C2G60220 | HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling. This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
C2G - C2G60220 - Features
- Extend 4K at 60Hz (4:4:4) up to 115ft with Cat 6/6a cable
- Extend 4K at 30Hz (4:4:4) up to 131ft and 1080p at 60Hz up to 164ft with Cat 5e/6/6a cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports multi-channel audio formats, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio
- Supports one-way IR pass-through from receiver to transmitter
- Supports bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units
- Slim profile for easy installation
Specifications
Specifications
C2G - C2G60220 - Product Categories
- Audio and Visual
- AV Cable and Connectors
- AV Adapters and Couplers
C2G - C2G60220 - Specifications
| Manufacturer Part Number | C2G60220 |
|---|---|
| Brand Name | C2G (Legrand) |
| Color | Black |
| Type | Active Device, Receiver |
| Application Sector | Commercial, Residential |
| Product Line | C2G |
| Country Of Origin | China |
| Warranty Type | 5-Year |
| UPC Number | 757120602200 |
| Product Height US | 0.6 in |
| Product Length US | 3.54 in |
| Product Width US | 2.75 in |
| CE Certified | Yes |
| FCC Compliant | Yes |
| Max Distance Support | 164 ft |
| Operating Temperature | 0°-45°C, 32°-113°F |
| Operating Humidity | 10-90% RH (Non-Condensing) |
| Storage Humidity | 10-90% RH (Non-Condensing) |
| Signal Transmission | Unidirectional |
| Storage Temperature | -20° - 70° C, -4° - 158° F |
| Video Resolution | 1080p, 4K, 4K 30Hz, 4K 60Hz |
| Video Input Support | HDMI |
| Video Output Support | HDMI |
| UNSPSC Code | 45111500 |
