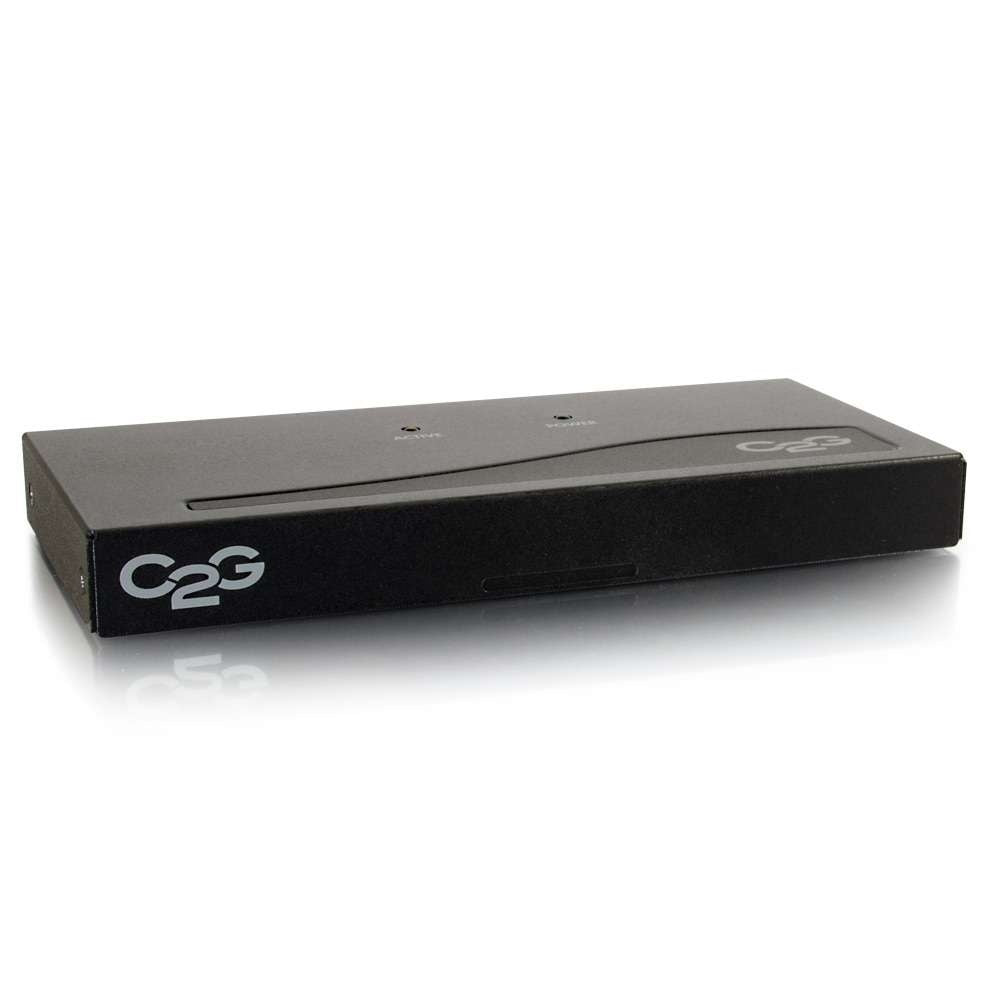

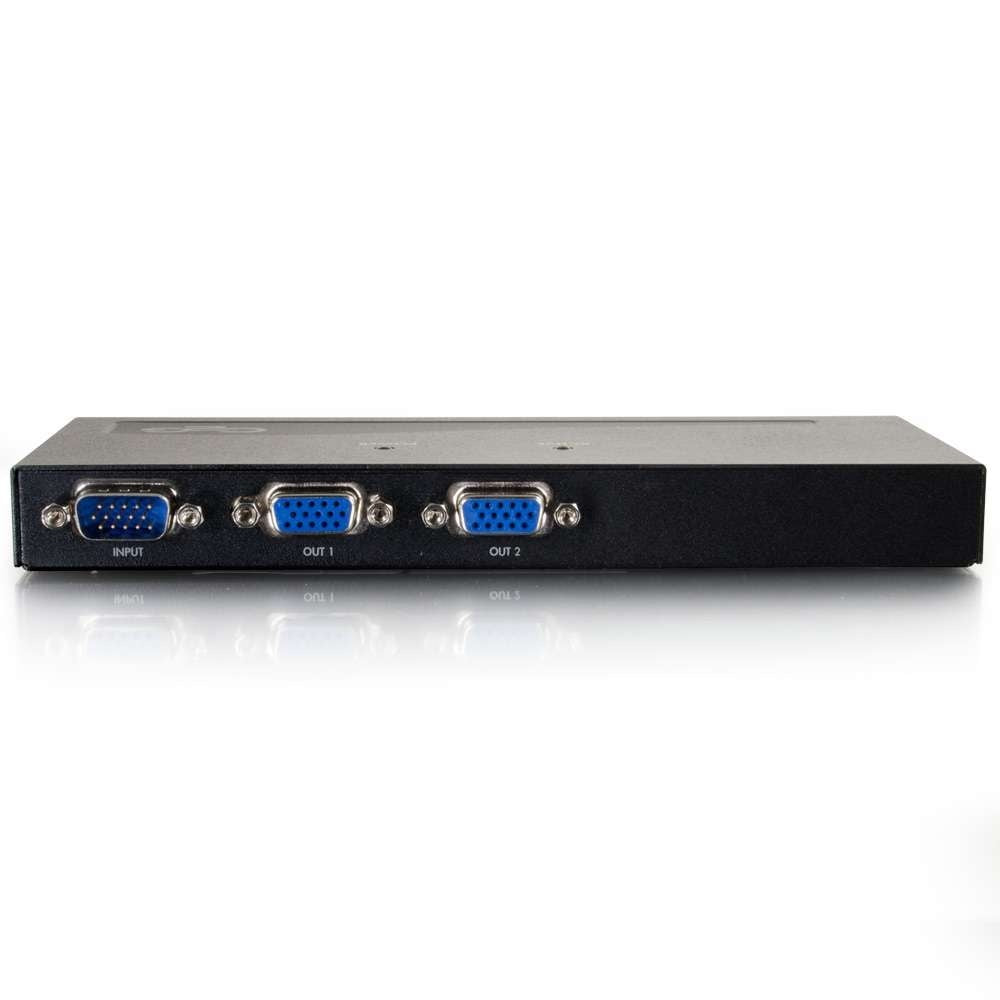

C2G CG29550 | 2-Port UXGA Monitor Splitter/Extender (Male Input) (TAA Compliant)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Distribute any video signal to 2 different video outputs, while maintaining vivid picture quality. Though powerful, this splitter is easy to use; just connect the cables, and you're ready to go! There is no software required, or complicated interface cards to install. This monitor splitter not only distributes, but also boosts your high resolution video signal up to 210 feet. Includes power-saving mode, color-coded connectors for the input and outputs, durable all-metal housing, power and activity LED indicators. Also suitable for XGA, SVGA, VGA, and MultiSync® resolution monitors. Daisy-chain multiple units together for even more outputs. Please Note: The term "extender" refers to the product's ability to extend the distance of your cable runs to 210 feet. It does not mean the product provides "extended desktop" functionality, or the ability to view different information on each of your monitors. If you are looking to add extended desktop capabilities to your computer, please consider product #30534, 6in USB 2.0 to XGA Adapter. UXGA provides a screen resolution of 1600 x 1200 pixels. Replacement power supply part number #98033.
C2G - CG29550 - Features
- Split a single VGA signal from a PC to two or more displays
- Combine multiple splitters to display signal to even more displays
- Available in 2, and 4-port versions
- Distribute any Video Signal to 2 Different Video Outputs, While Maintaining Vivid Picture Quality
- Though Powerful this Splitter is Easy to Use
Specifications
Specifications
C2G - CG29550 - Product Categories
- Audio and Visual
- Video Signal Distribution
- Splitters
C2G - CG29550 - Specifications
| Manufacturer Part Number | CG29550 |
|---|---|
| Brand Name | C2G (Legrand) |
| Color | Black |
| Type | Active Device, Extender, Splitter |
| Application Sector | Commercial, Residential |
| Product Line | C2G |
| Country Of Origin | Taiwan, Province Of China |
| Replaced by Part Number | 29551 |
| UPC Number | 757120295501 |
| Product Height US | 0.78 in |
| Product Length US | 3.15 in |
| Product Width US | 7.12 in |
| TAA Compliant | Yes |
| Amperage | 600 mA |
| Cable Diameter | 5.5 mm |
| Max Distance Support | 210 ft |
| Operating Temperature | 0°-40°C, 32°-104°F |
| Operating Humidity | 0-80% RH (Non-Condensing) |
| Storage Temperature | -10° - 60° C, 14° - 140° F |
| Video Resolution | SVGA (800x600), UXGA (1600x1200), VGA (640x480), XGA (1024x768) |
| Video Input Support | VGA |
| Video Output Support | VGA |
| UNSPSC Code | 52161556 |
