Brand: Legrand | SKU: 1043345

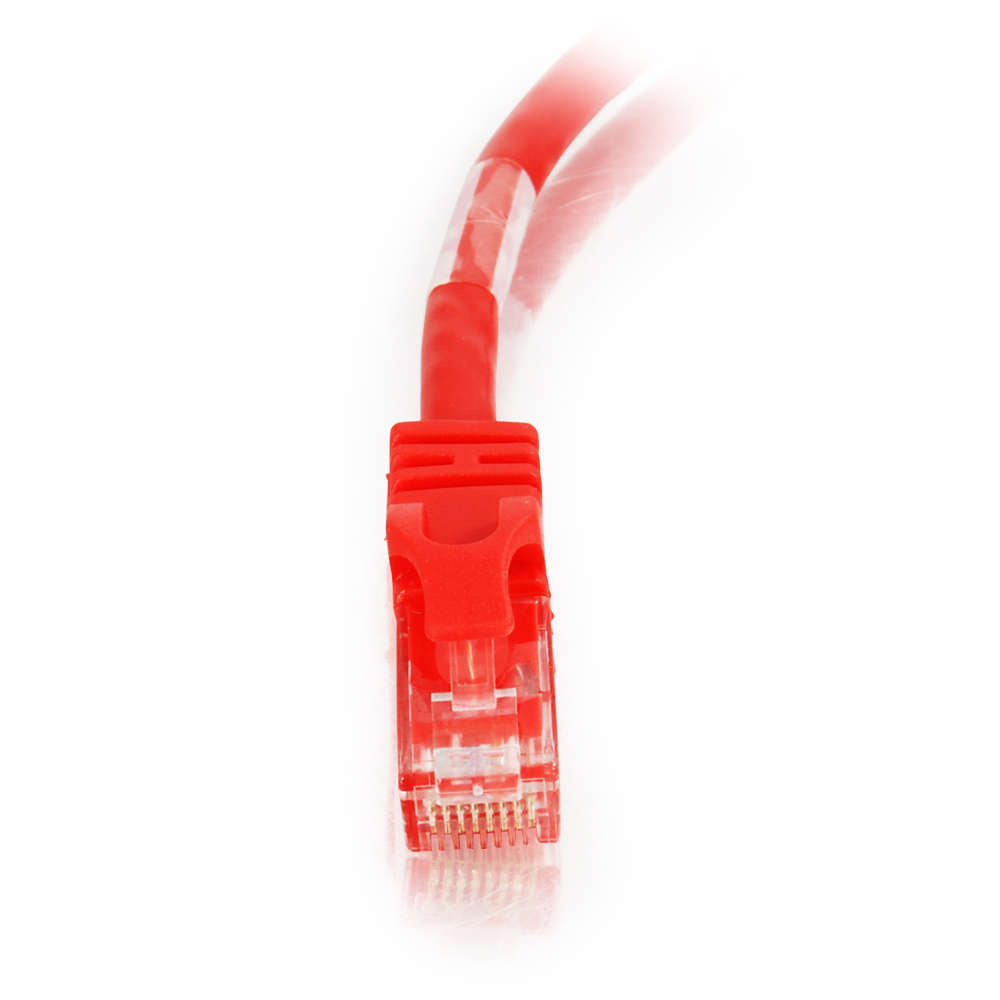

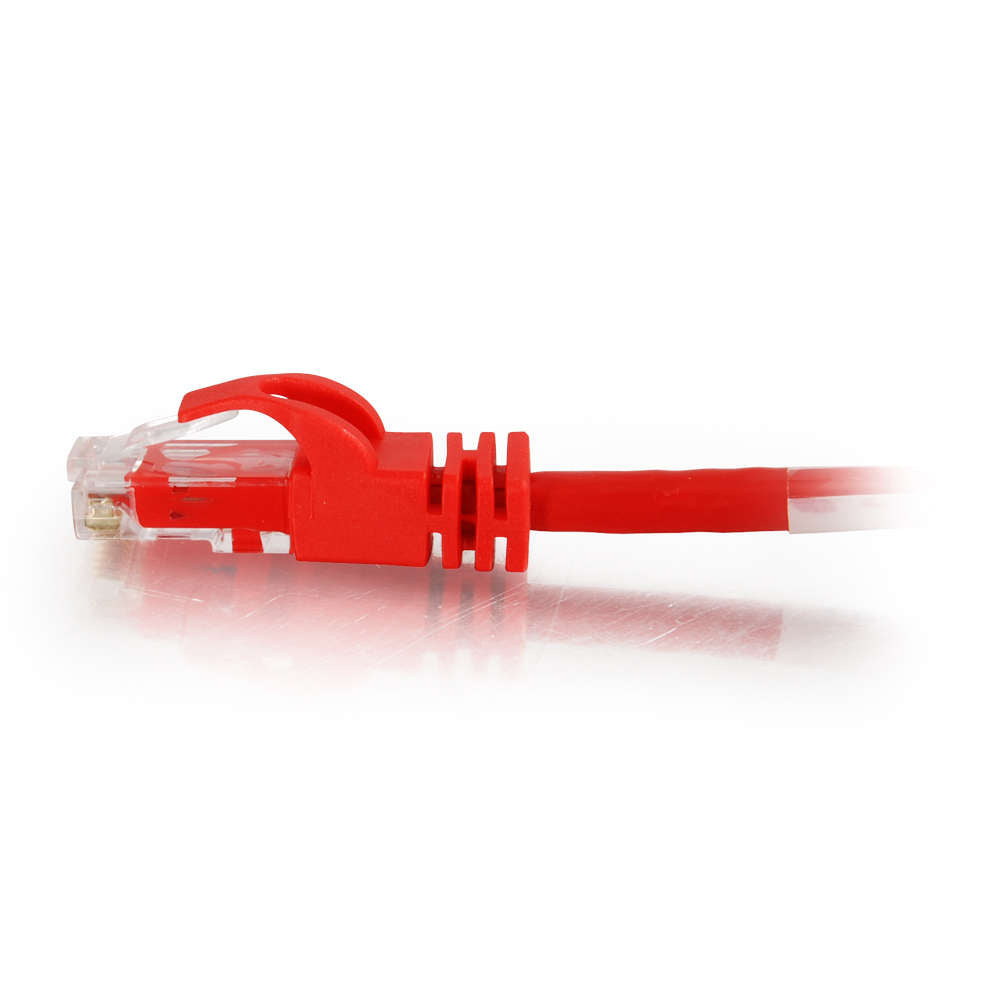

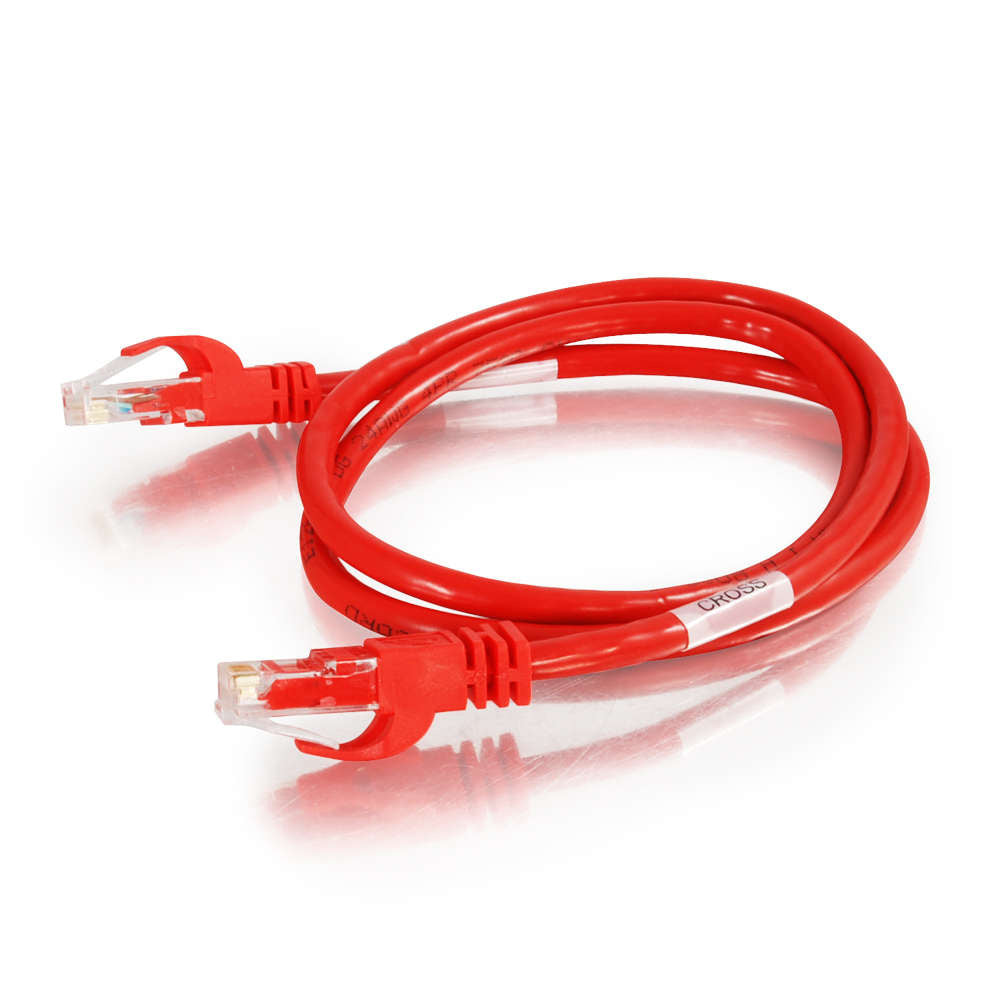

C2G CG31381 | 5ft (1.5m) Cat6 Snagless Unshielded (UTP) Network Crossover Patch Cable - Red

Regular price $6.36
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

C2G CG31381 | 5ft (1.5m) Cat6 Snagless Unshielded (UTP) Network Crossover Patch Cable - Red

This Cat6 network crossover patch cable is an ideal solution for connecting two computer to share files or data. The crossed pin configuration allows two computers to be connected peer-to-peer without the need for a hub or switch. This cable may also be used to connect network switches and hubs without an uplink port to other switches and hubs. Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat6 standards. This cable has been designed tor educe both impedance and structural return loss (SRL) which ensures error-free transmission. Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. This patch cable provides the necessary throughput and is able to handle up to Gigabit Ethernet speeds. The molded, snagless design prevents unwanted cable snags during installation without impairing the ability to insert and remove the connector from the port. It also provides unparalleled strain relief so that the cable is not damaged even when pulled excessively.

C2G - CG31381 - Features

  • Snagless design protects clips when plugging and unplugging
  • Standard RJ45 connectors and unshielded twisted pair wires
  • Available in four colors to color-code a network
  • Available in lengths up to 25ft

Specifications

C2G - CG31381 - Product Categories

  • Audio and Visual
  • AV Cable and Connectors
  • AV Cable Assemblies

C2G - CG31381 - Specifications

Manufacturer Part NumberCG31381
Brand NameC2G (Legrand)
ColorRed
TypeCable
Application SectorCommercial, Industrial, Residential
Product LineC2G
Country Of OriginVietnam
Warranty TypeLifetime
UPC Number757120313816
Cable Length5 ft
Product Length US5.0 FT
Outside Diameter5.68 mm
CE CertifiedYes
REACH CompliantYes
RoHS CompliantYes
Bandwidth500 mHz
Cable Diameter6.2 mm
Bend Radius15.2 mm
Connector TypeSnagless
Cable TypeCrossover, Ethernet Patch Cable
Category Performance RatingCat6
Conductor4-Pair Twisted
Indoor/OutdoorIndoor
Jacket MaterialPVC (Polyvinyl Chloride)
Operating Temperature-20°-80°C
Shield TypeUTP
Shielded/UnshieldedUnshielded
Storage Temperature-20° - 80° C
Wire Gauge24 AWG
UNSPSC Code52161500
