Brand: Legrand | SKU: 775909

C2G CG50229 | 35ft (10.7m) Select VGA + 3.5mm Stereo Audio A/V Cable M/M - In-Wall CMG-Rated

Regular price $62.83
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

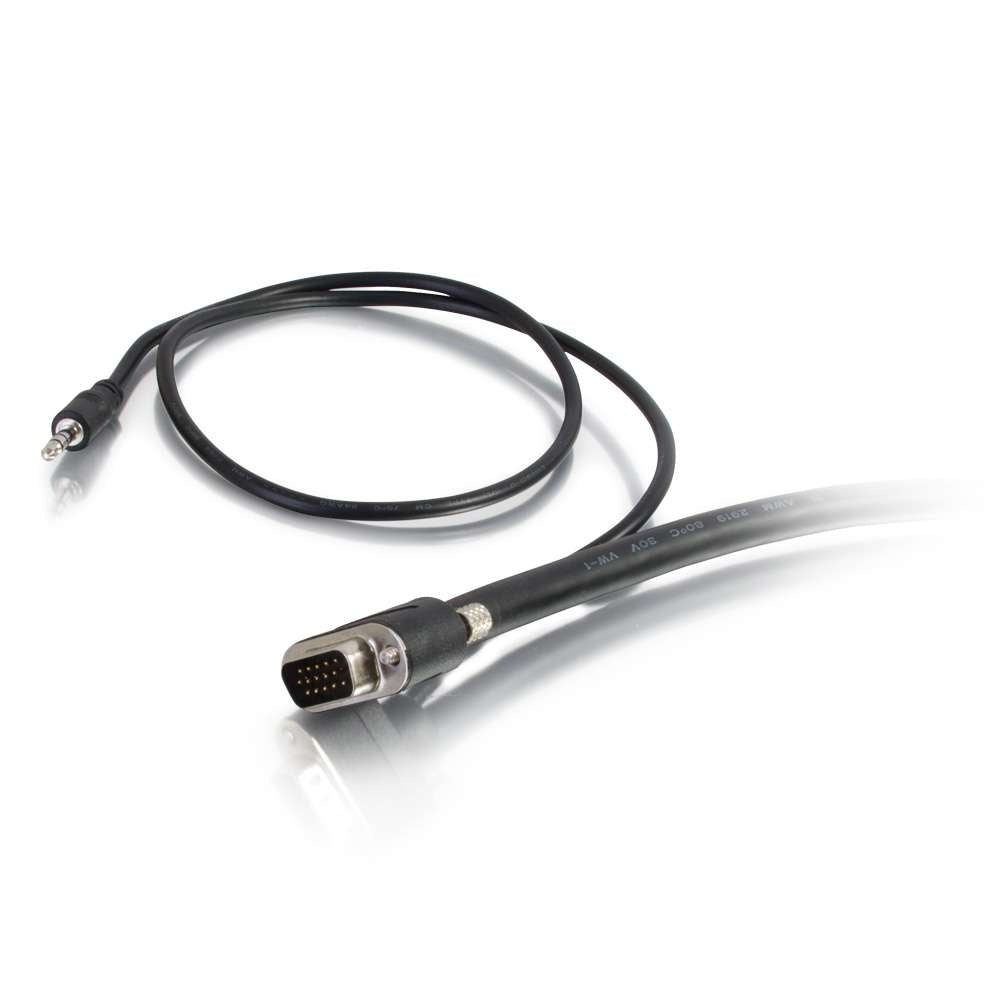

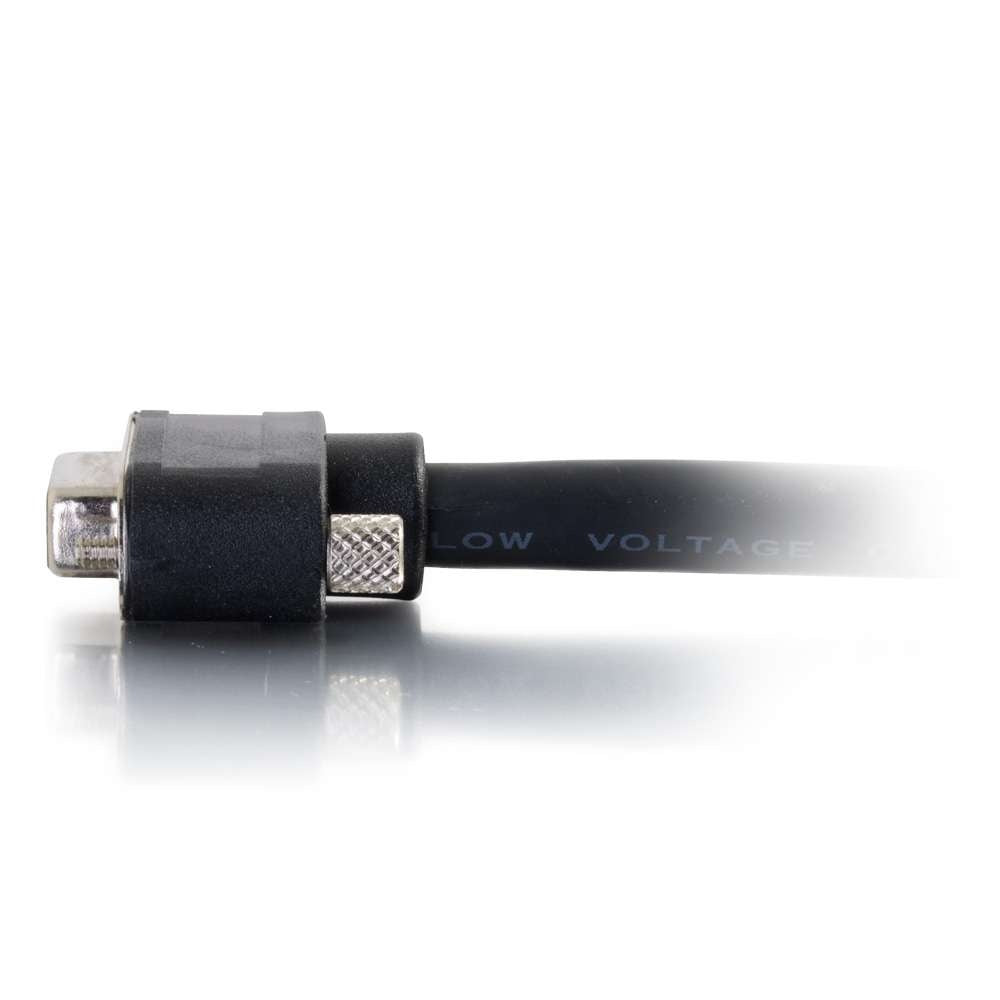

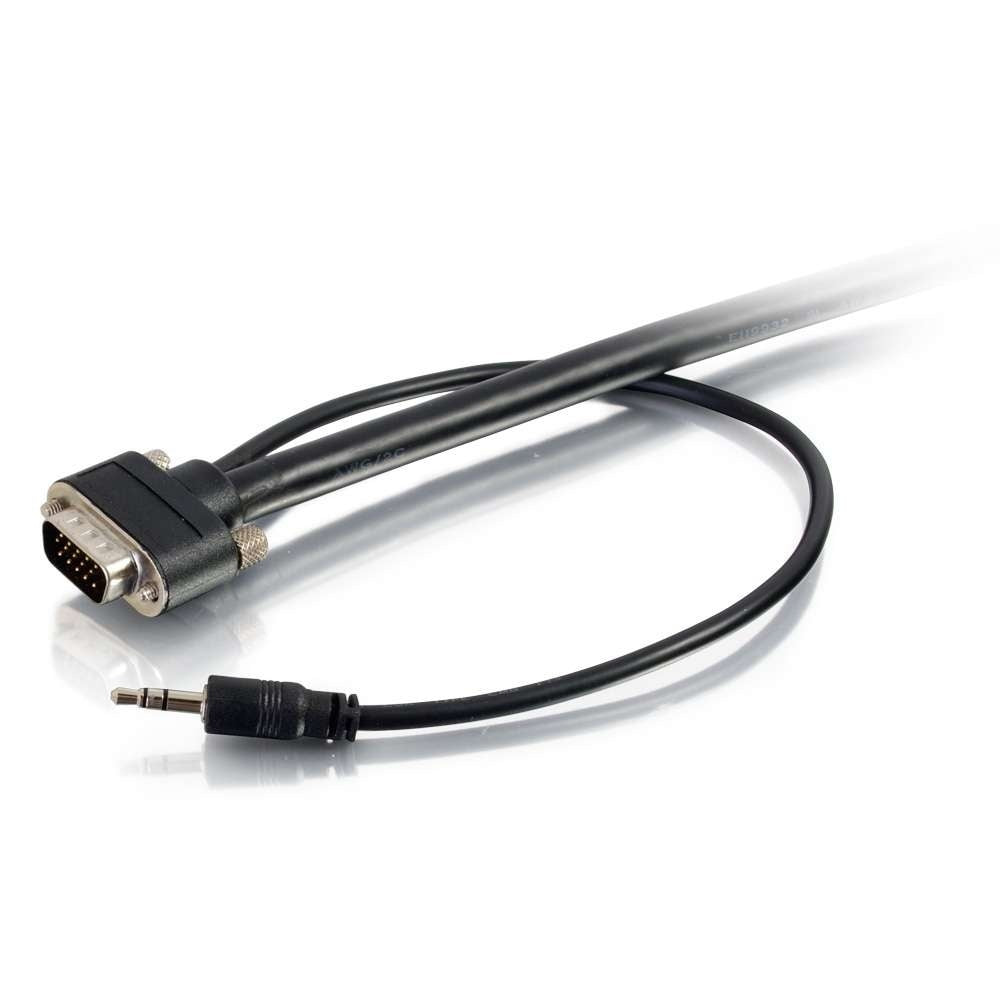

C2G CG50229 | 35ft (10.7m) Select VGA + 3.5mm Stereo Audio A/V Cable M/M - In-Wall CMG-Rated

The C2G Select VGA + 3.5mm A/V Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536) and support for stereo audio. The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. The 3.5mm audio pigtail on the source side of the cable extends 24 inches away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where the VGA video output and 3.5mm audio output are commonly placed on opposite sides. The 3.5mm audio pigtail on the display side of the cable extends 10 inches away from the VGA connector providing easy connectivity without excess cabling. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, ensuring that the content from the source is sent at the optimal resolution for the display. <

C2G - CG50229 - Features

  • In-wall, CMG-rated jacket
  • Supports up to a 2048x1536 resolution
  • All 15 pins wired to support DDC2 (E-DDC) and EDID
  • Low profile connectors
  • Low profile HD15 connectors (1 1/4in total depth)
  • Small-diameter cable (1/4in diameter)
  • Designed to meet stringent building codes for placement of low voltage wiring within a commercial environment
  • Tinned copper braiding provides 92% shielding

Specifications

C2G - CG50229 - Product Categories

  • Audio and Visual
  • AV Cable and Connectors
  • AV Cable Assemblies

C2G - CG50229 - Specifications

Manufacturer Part NumberCG50229
Brand NameC2G (Legrand)
ColorBlack
TypeCable
Application SectorCommercial, Residential
Product LineC2G
Country Of OriginChina
UPC Number757120502296
Cable Length35 ft
Product Length US35.0 FT
Outside Diameter9 mm
Cable Diameter9 mm
Bend Radius85 mm
Cable TypeAudio, Video
Data Transfer Rate5.4 Gbps
Jacket MaterialPVC (Polyvinyl Chloride)
Jacket RatingCMG Rated, FT4 Rated
Jacket ApplicationIn-Wall Rated
Video ResolutionQXGA (2048x1536)
Video Input SupportVGA
Video Output SupportVGA
Voltage30.0 V
Wire Gauge30 AWG
UNSPSC Code52161500
