Cablofil 6M-FWPS-24-S6 | Fire Wall Penetration Sleeve,6 X 24 In. Sy...
Regular price
$5,078.47
Unit price
Brand: Legrand
|
SKU:
10154669
Regular price
$5,078.47
Unit price
Description
Description

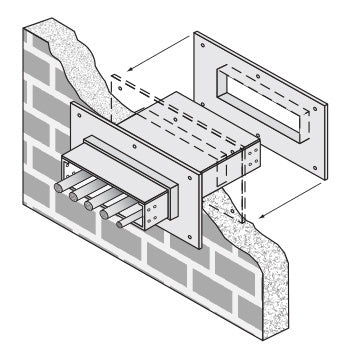

Cablofil 6M-FWPS-24-S6 | Fire Wall Penetration Sleeve,6 X 24 In. System
Fabricated cable tray fire stop sleeves from Legrand/Cablofil, combined with Firestop products, are an economical alternative to the high cost of fabricating protective fire wall and floor penetration sleeves in the field. This firestop system provides a rigid support for cable tray in a UL classified system approved for fire wall and floor penetrations.
Cablofil - 6M-FWPS-24-S6 - Features
- Overall length of the sleeve is 20".
- Will fit walls up to 8" thick.
- The Fire Block is a compressible fire stop brick, well-suited for installations where frequent cable changes may be required.
- Blocks are easily cut to fit any space, and can be removed and reinstalled when cable configurations change.
- When exposed to fire, the blocks expand to lock the seal in place.
Specifications
Specifications
Cablofil - 6M-FWPS-24-S6 - Specifications
| Product Line | Cablofil |
|---|---|
| Finish | GS |
| UPC Number | 800388206267 |
| Country Of Origin | Mexico |
| Application Sector | Commercial, Industrial |
| Product Width US | 30.0 in |
| Product Weight US | 67.17 lb |
| Product Volume US | 4.167 cu ft |
| Product Depth US | 20.0 in |
| Product Height US | 12.0 in |
| BAA | Yes |
