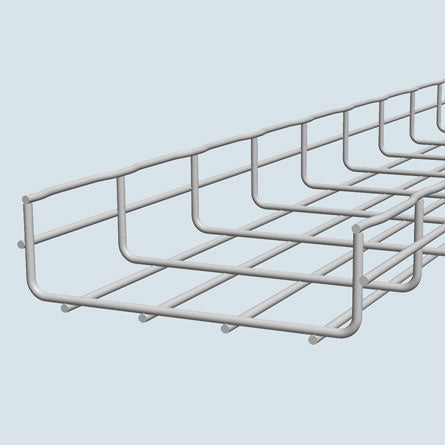

Cablofil CF54/100EZ | CF 54 Series Cable Tray, 2 in. Depth x 4 in. ...
Description
Description
Cablofil cable tray is the revolutionary system constructed of precision-engineered, high-quality, welded steel wire. The Cablofil system includes everything to make installation effortless and it adapts easily as your cable management needs grow and c hange. The FAS support system is exclusively designed with a versatile range of profiles and brackets. This innovative system dramatically reduces installation time by utilizing a simple one-step process that requires no screws, bolts or special tools. "T" welding the lateral wires to the top edge wire creates a "Safe-T-Edge" which minimizes the risk of fraying cables and also protects installers from sharp wire ends. The optimized wire size design makes Cablofil cable tray durable and extremely str ong.
Available in 1 in., 2 in., 4 in. and 6 in. depths. Available in widths ranging from 2 in. to 24 in. Standard 10 ft. lengths. Available in: Electro Zinc (EZ), Hot-Dipped Galvanized (GC), 304L Stainless Steel (IN), 316L Stainless Steel (IN), or dura ble UL Classified powder coated colors: Black (BL) and Custom Painted Color (PE).
"T" welded design creates a "Safe-T-Edge" which is easy on installers and cables.
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy: three qualities which make Cablofil Wiremesh Cable Tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation. .
Cablofil - CF54/100EZ - Features
- Special Safe-T-Edge: protects installers from sharp ends while it prevents cables from fraying.
- Smooth and round wire mesh: to resist dirt and dust build-up.
- Cable tray straight sections: come in easy to handle standard 10’ lengths.
- Large mesh size (2" wide by 4" long): allows cable installers to route cables in and out at any point without cutting the tray; 1" to 6" high flange side of the tray prevents cables from falling off.
- Dimensions are nominal: other sizes available on request.
- Available in the following finishes: Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted.
Specifications
Specifications
Cablofil - CF54/100EZ - Specifications
| Product Line | Cablofil |
|---|---|
| Finish | Electroplated Zinc |
| UPC Number | 800388000254 |
| Country Of Origin | Mexico |
| Application Sector | Commercial, Industrial |
| Standard | UL Classified |
| Product Width US | 3.94 in |
| Product Weight US | 5.137 lb |
| Product Volume US | 0.596 cu ft |
| Product Depth US | 118.2 in |
| Product Height US | 2.21 in |
| Product Environmental Profile | Yes |
| Components | Straight Section |
| Material | Steel |
| Type | Wire Basket |
| UNSPSC Code | 39131700 |
Cablofil - CF54/100EZ - Videos
| Cablofil CF54/100EZ Videos | Click to View |
|---|
