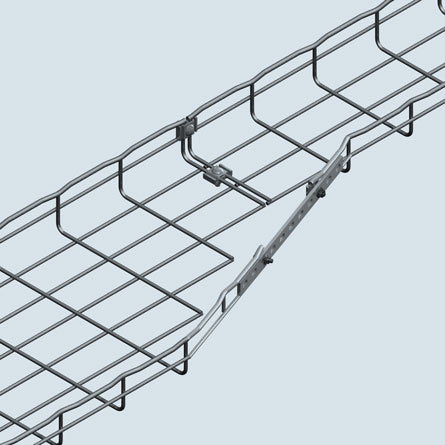

Cablofil ED275RSKITEZ | Reduction Splice Kit
Description
Description
Only two splices are needed to join Cablofil cable tray 2 in. deep by widths up to 12 in. Use two splices on sides and one or two on the bottom for 18 in. to 24 in. tray. Special assembly tool is included in every bag of splices. Also available in o ther finishes. Contact your sales representative for ordering information.
Cablofil offers a number of UL Classified splices for Cablofil cable tray to fill any installation demand. All of the splice options are designed with one goal - to make insta llation easy. Some of the splices require no tools for installation, yet each option offers a durable, strong splice that has been tested and proven in installations around the world. The EDRN fast splice is the strongest and fastest splice, which sa ves up to half of the install time compared to bolted connections.
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy.
Cablofil - ED275RSKITEZ - Features
- Cablofil's Wiremesh Cable Tray concept is based on performance, safety, and economy. These three qualities make the Cablofil Wiremesh Cable Tray system preferred by installers
- Cablofil adapts to the most complex configurations
- Structure provides maximum strength for minimum weight
- Ease of creating fittings on-site
- Wide range of unique and universal accessories
- Complete freedom in routing
- Exceptionally fast installation
- Fastest splice available from Cablofil, saves up to 1/2 the install time compared to using bolted connections.
- Special assembly tool (EDRNTOOL) is included in every bag of splices.
- UL Classified Splice.
Specifications
Specifications
Cablofil - ED275RSKITEZ - Specifications
| Product Line | Cablofil |
|---|---|
| Finish | Electroplated Zinc |
| UPC Number | 800388017757 |
| Country Of Origin | France |
| Application Sector | Commercial, Industrial |
| Product Width US | 1.22 in |
| Product Weight US | 0.401 lb |
| Product Volume US | 0.019 cu ft |
| Product Depth US | 10.83 in |
| Product Height US | 2.55 in |
| Product Environmental Profile | Yes |
| Components | Splice |
| Type | Wire Basket |
| UNSPSC Code | 39131700 |
