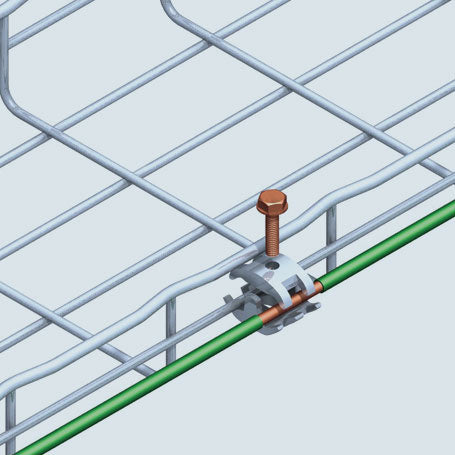

Cablofil GNDCL | Grounding Lug, 1/0 -6 AWG, Steel
Description
Description
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy; three qualities which make Cablofil Wiremesh Cable Tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation.
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy.
Cablofil - GNDCL - Features
- Cablofil's Wiremesh Cable Tray concept is based on performance, safety, and economy. These three qualities make the Cablofil Wiremesh Cable Tray system preferred by installers
- Cablofil adapts to the most complex configurations
- Structure provides maximum strength for minimum weight
- Ease of creating fittings on-site
- Wide range of unique and universal accessories
- Complete freedom in routing
- Exceptionally fast installation
- Accommodates AWG 1/0 - #6 grounding wires.
- Use one GNDCL every 60’ and/or at the end of each cable tray run. If cable tray is used as an Equipment Grounding Conductor, use one on each section of tray for a code compliant installation.
- Works with any size Cablofil tray.
- UL Listed, CSA approved.
Specifications
Specifications
Cablofil - GNDCL - Specifications
| Product Line | Cablofil |
|---|---|
| Finish | Aluminum |
| UPC Number | 800388027763 |
| Country Of Origin | China |
| Application Sector | Commercial, Industrial |
| Standard | UL Classified |
| Product Width US | 1.06 in |
| Product Weight US | 0.16 lb |
| Product Volume US | 0.001 cu ft |
| Product Depth US | 1.1 in |
| Product Height US | 1.34 in |
| Connection Type | Compression |
| UNSPSC Code | 39121400 |
Cablofil - GNDCL - Videos
| Cablofil GNDCL Videos | Click to View |
|---|
