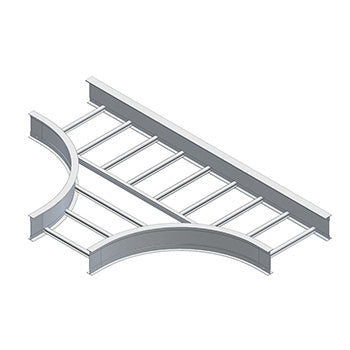

Cablofil LD-4A-HT24-06 | Horizontal Standard Tee
Description
Description
The aluminum I-beam design of ITray is perfect for industrial installations with large diameter cables in long span situations, minimizing total tray width and creating a smooth transition between straight sections and fittings. A structural offset in the sidewall creates strong, mid-span splices that need fewer supports. Each splice snaps in place and stays without holding.
Choose from an extensive selection of metallic ladder tray with a variety of rung and bottom styles to choose from. Finishes include steel, 304L and 316L stainless steel to meet the needs of any application. Rail heights range from 4"" to 7"" and width sizes are available up to 36"".
Cablofil - LD-4A-HT24-06 - Features
- Includes splices and hardware
- 30% faster installation with 50% less hardware
- Simple mid-span splicing with maintaining full NEMA load class
- I-beam side rails make a stronger, lighter tray
- Smoother, easier cable pulling with less damage
- Fittings that fit well together allow for smther installations
- All-aluminum construction
- Integrates well with most existing tray installations
Specifications
Specifications
Cablofil - LD-4A-HT24-06 - Specifications
| Product Line | Cablofil |
|---|---|
| UPC Number | 800388084407 |
| Country Of Origin | Mexico |
| Bottom Type | Ladder |
| Application Sector | Commercial, Industrial |
| Type | Horizontal Other |
| Product Width US | 33.625 in |
| Product Weight US | 11.68 lb |
| Product Volume US | 4.952 cu ft |
| Product Depth US | 60.0 in |
| Product Height US | 4.241 in |
| BAA | Yes |
| Components | Couplers / Junctions |
