Cablofil UFC550KITPG | Under Floor Support Clamp Kit
Description
Description

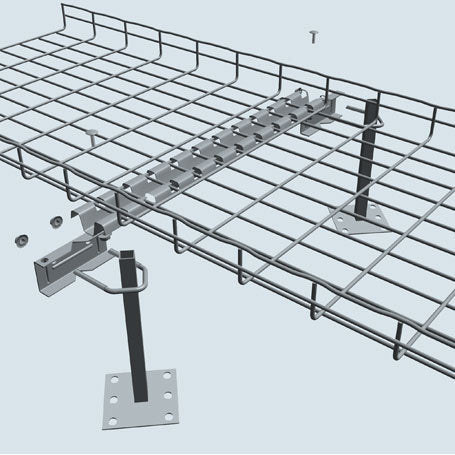

Attaches FAS L brackets (sold separately) to access floor posts through one side of the U-bolt. Unique support plate works with square or round posts. Also available in Black (BL), and Custom Painted Color (PE) finishes.Each clamp kit contains : U-bo lt, two flange nuts and support plate.
Cablofil/Legrand offers a wide variety of options for raised access floor installations, the newest being the UFS Under Floor Cable Management System. UFS is independently supported so that it does not void the w arranty of the raised access floor and it is engineered with 2 ft. tray sections so that it can be installed entirely through the floor openings.
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy.
Cablofil - UFC550KITPG - Features
- Cablofil's Wiremesh Cable Tray concept is based on performance, safety, and economy. These three qualities make the Cablofil Wiremesh Cable Tray system preferred by installers
- Cablofil adapts to the most complex configurations
- Structure provides maximum strength for minimum weight
- Ease of creating fittings on-site
- Wide range of unique and universal accessories
- Complete freedom in routing
- Exceptionally fast installation
- Creates a tray support using FAS L brackets in under floor applications.
- To install, clamp FAS L Brackets to raised floor support through one side of U-bolt.
- UFC clamp works with round or square post profiles.
- Turn UFC support plate around if post faces are parallel with floor grid.
Specifications
Specifications
Cablofil - UFC550KITPG - Specifications
| Product Line | Cablofil |
|---|---|
| Finish | Pre-Galvanized |
| UPC Number | 800388017719 |
| Country Of Origin | United States |
| Installation Location | Underfloor |
| Application Sector | Commercial, Industrial |
| Product Width US | 13.5 in |
| Product Weight US | 2.46 lb |
| Product Volume US | 0.172 cu ft |
| Product Depth US | 22.0 in |
| Product Height US | 1.0 in |
| Product Environmental Profile | Yes |
| Components | Support Systems |
| Type | Wire Basket |
| UNSPSC Code | 39131700 |
