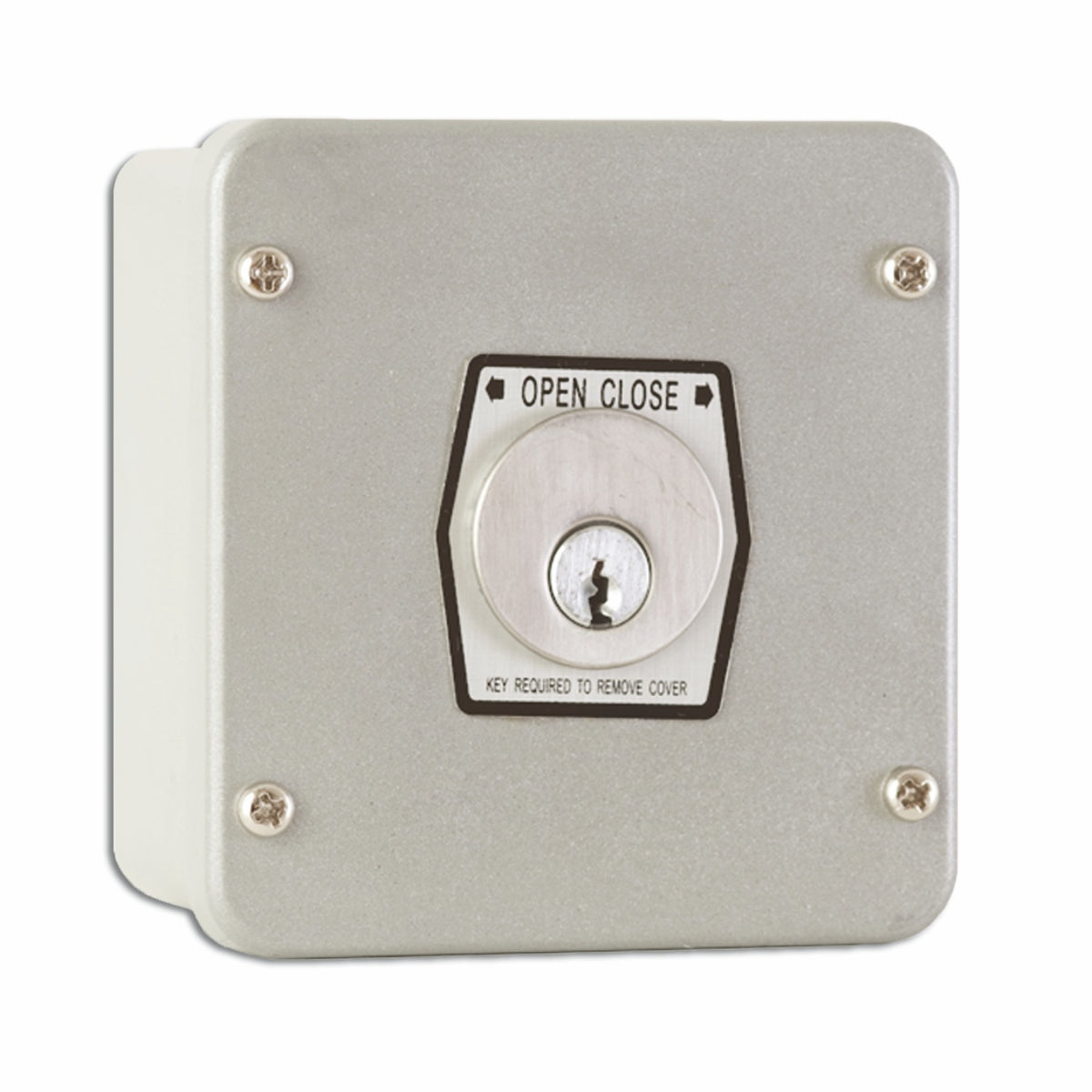

Camden Door Controls CI1KX | Exterior Use Industrial Key Switches
The CI-1KX series of key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets for exterior use. They have 2 SPST momentary switches rated 3 A @ 240 VAC and a mortise cylinder with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters.
Camden Door Controls - CI1KX - Features
- Heavy duty die cast aluminum enclosure
- NEMA 4 rated for exterior use
- Form A and Form C outputs available
- High power outputs
- 18 A @ 125 VDC
- 15 A @ 250 VDC
- Tamper resistant
- UL Listed, CSA certified
Specifications
Specifications
Camden Door Controls - CI1KX - Specifications
| Contact Rating | 18 A @ 30V AC/DC, 125 VDC |
|---|---|
| Enclosure | Nema 4 |
| Dimensions | 5.5"L x 6.5"W x 4.25"H |
| Weight | 2.14lbs |
| UPC | 670454110053 |
| Amp Rating | 15a |
| Other | Vandal Resistant |
| Circuit State | Normally Open |
| Faceplate Size | Approx. 4-1/2" X 4-1/2" |
| Lock Type | Accepts Mortise Cylinder |
| Mounting | Surface Mount |
| Product Type | Mortise Cylinder Key Switch |
| Sales Category | Electric Keyswitches |
| Switch State | Momentary |
| UNSPSC CODE | 46171500 |
