Brand: Camden Door Controls | SKU: CS163828

Camden Door Controls CM-1000 | Surface Mount Key Switch, Aluminum Faceplate, SPST Momentary, N/O, Brushed Aluminum

$111.16

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

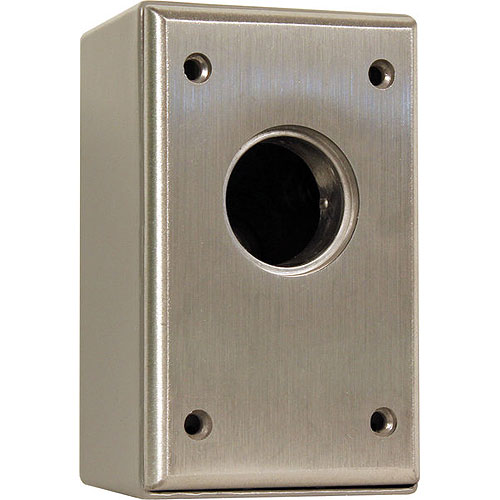

The Camden 1000 is a key switch with a cast aluminum faceplate and surface box. The unit features one SPST momentary switch and a normally-open contact. The 1000 offers a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.

Key Features

SPST momentary switch
Normally-open contact
Brushed aluminum
Supplied with heavy duty diecast surface box
Accepts standard mortise cylinders (1" - 1 1/4")
Heavy duty 1/4" thick aluminum plate
Cylinder sits flush to faceplate
Tamper proof screws and driver provided
No set screws required
Color coded 18 AWG soldered leads
Heat shrink protective sleeve over contacts
Optional 1-60 second pneumatic time delay.
3 year warranty

Specifications

UPC	670454120014
Also known as	CM1000, CM-1000
Voltage	12/24V AC/DC
Contact Rating	6 Amps
Switch Life	100,000 cycles
Temp Range	32F - 85F (0C to +85C),
Finish	Brushed aluminum
Dimensions	4-1/2" x 2-3/4" x 2" (114mm x 70mm x 51mm)
