Description

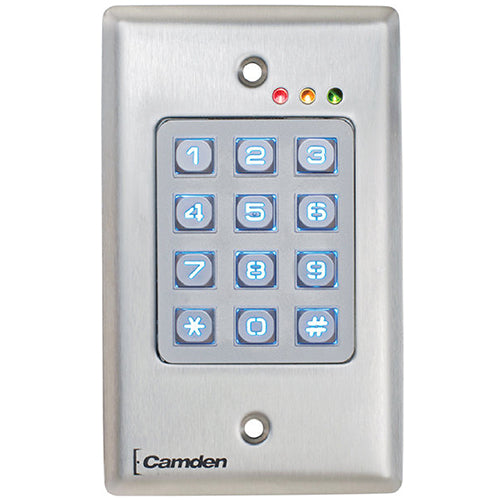

The Camden 120TX is a batter operated wireless keypad that is designed for outdoor use and is vandal resistant. The unit features a metal backlit keypad, a built-in wireless transmitter and 999 user capacity. CM-120 Series keypads are North American built and provide Tri-Brid stand alone, Wiegand and optional wireless operation!

Key Features

Flush mount single gang stainless steel faceplate
3 LED's + Piezo Buzzer
Request-to-Exit Input
Door contact input for anti-tailgating & door open alarm
Global lock-out feature
Includes tamperproof screws & driver
Option for plug-in TX-99 wireless transmitter, 2 channel

Specifications

UPC	670454173683
Also known as	CM120TX, CM-120TX
Voltage	12/24 V AC/DC
Mounting	Single gang, flush (2) #6 machine and tamper proof screws
Current Draw	30 MA Standby, 90 MA Max
Input	1 x Rex Input / 1 x Door Contact Input
Contact Type	2 x Form C
Contact Rating	3 AMPS @ 24 VDC
Capacity	999 User Codes
Length	Variable, Up to 8 Digits (10 Million Possible Codes)
Response Time	0.3 Seconds
Time Delay	1 to 255 Seconds, or Latched
Temp Range	-40F to + 185F (-40C to +85C)
Dimensions	2 3/4" x 4 1/2" x 3/4" (70 mm x 114 mm x 19 mm)
RF Output	Optional Plug-In Transmitter, 2 Channel

Documents and Downloads

Camden Door Controls CM-120TX Data Sheet
