Brand: Camden Door Controls
|
SKU:
765944

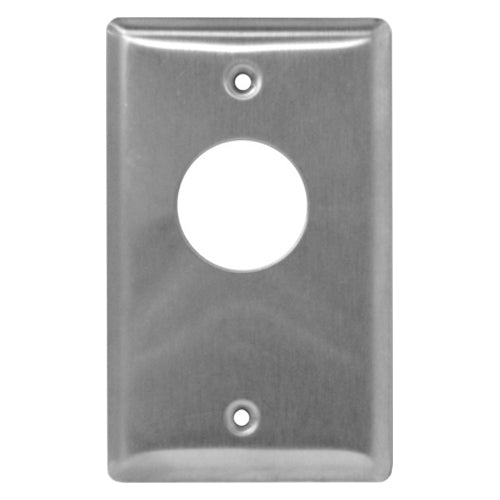

Camden Door Controls CM-1210 | Key Switch, Stainless Steel Single Gang Faceplate, Flush Mount, SPST Maintained
Regular price
$97.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-1210 | Key Switch, Stainless Steel Single G...
Regular price
$97.90
Unit price
Brand: Camden Door Controls
|
SKU:
765944
Regular price
$97.90
Unit price
Shipping calculated at checkout.
Description
Description
The Camden 1210 is a flush mounted key switch on a stainless steel single gang faceplate. The unit is equipped with a SPST maintained switch. The preassembled switch mounting bracket is designed to minimize installation time. They accept virtually any 1" - 1 1/4" mortise cylinder (sold separately) and cam.
Key Features
- Single-gang
- SPST maintained switch
- Left and/or right operation
- Accepts standard mortise cylinders, 1" - 1 1/4"
- Heavy duty stainless steel faceplate
- Locators prevent cylinders from spinning
- Tamper proof screws supplied
- Indoor or outdoor application
- Optional 1-60 second pneumatic time delay
- 3 year warranty
Specifications
Specifications
Specifications
| UPC | 670454121097 |
|---|---|
| Also known as | CM1210, CM-1210 |
| Voltage | 12/24V AC/DC |
| Contact Rating | 6 Amps |
| Switch Life | 100,000 cycles |
| Temp Range | 32F - 85F (0C to +85C) |
| Finish | Stainless Steel US/C32D |
| Dimensions | 2-3/4"W x 4-1/2"H x 1-5/8"D (70mm x 114mm x 41mm) |
