Brand: Camden Door Controls
|
SKU:
CS255377
Camden Door Controls CM-2090 | Flush Mount Key Switch, Aluminum Narrow Faceplate, DPDT Maintained, Brushed Aluminum
Regular price
$115.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-2090 | Flush Mount Key Switch, Aluminum Nar...
Regular price
$115.17
Unit price
Brand: Camden Door Controls
|
SKU:
CS255377
Regular price
$115.17
Unit price
Shipping calculated at checkout.
Description
Description

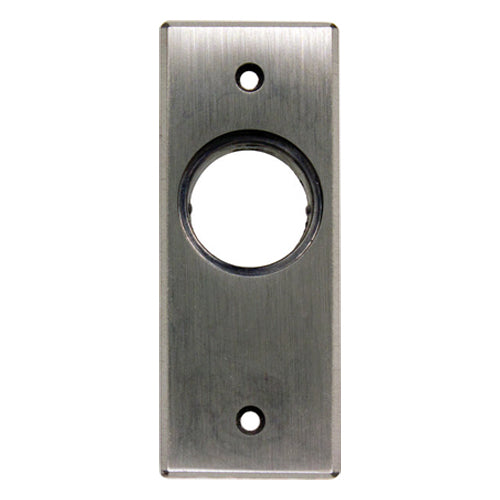

The Camden 2090 is a flush mount key switch with a cast aluminum narrow faceplate. The unit features one DPDT maintained switch. The 2090 offers a vandal resistant 1/4" thick aluminum faceplate with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted.
Key Features
- Narrow width
- DPDT maintained switch
- Brushed aluminum finish
- Indoor or outdoor flush applications
- Accepts standard mortise cylinders (1" - 1 1/4")
- Mullion style - only 1 3/4" wide
- Heavy duty 1/4" thick aluminum plate
- 1 piece die cast construction
- Locators prevent cylinder from spinning
- Cylinder sits flush to faceplate
- Tamper proof screws and driver provided
- No set screw required
- 1 or 2 switches may be installed
- Heat shrink protective sleeve over contacts
- Optional 1-60 second pneumatic time delay
Specifications
Specifications
Specifications
| UPC | 670454122087 |
|---|---|
| Also known as | CM2090, CM-2090 |
| Voltage | 12/24V AC/DC |
| Contact Rating | 6 Amps |
| Switch Life | 100,000 cycles |
| Temp Range | 32F - 85F (0C to +85C) |
| Finish | Brushed Aluminum |
| Dimensions | 4-1/2" x 1-3/4" x 1-1/2" (114mm x 44mm x 42mm) |
