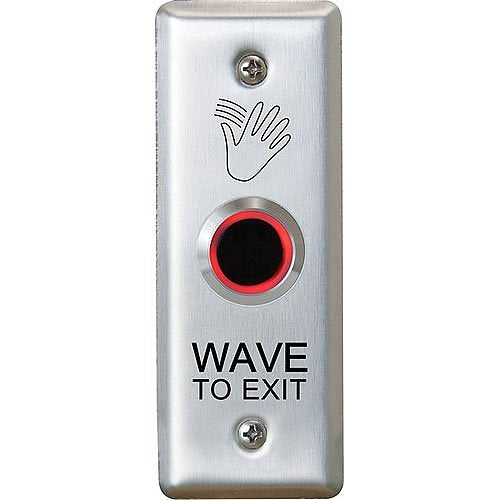

Camden Door Controls CM-221/46N | Camden Valuewave 12/24V Dc Powered Touchless Switch Relay, Narrow, Stainless-Steel Faceplate, With Light Ring, Wave To Exit Graphics
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-221/46N | Camden Valuewave 12/24V Dc Powere...
Description
Description
Camden ValueWave(tm) 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.
These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.
ValueWave(tm) hands free switches are both water resistant and offer a built-in light ring standard - CM-221 for red/green or CM-222 for blue/green illumination.
Camden Door Controls - CM-221/46N - Features
- Adjustable sensor range 2" to 8" (5 to 20 cm)
- Adjustable time delay (0.5 to 20 sec.) and toggle operation
- Red/green light ring with switch or remote activation
- Weather/water resistant, IP 65 rated
- Single, narrow and double gang stainless steel faceplates
- Selection of faceplate laser etched graphics, resistant to cleaners
- (1) Form 'C' contact, 1A @ 30 VDC
Specifications
Specifications
Camden Door Controls - CM-221/46N - Specifications
| Brand Name | Camden Door Controls |
|---|---|
| Manufacturer Part Number | CM-221/46N |
| Item Description | Camden Valuewave 12/24V Dc Powered Touchless Switch Relay, Narrow, Stainless-Steel Faceplate, With Light Ring, Wave To Exit Graphics |
| Product Line | ValueWave |
| Product Model | CM-221/46N |
| Product Name | ValueWave CM-221/46N Touch-free Button |
| Product Series | CM-221 |
| Product Type | Touch-free Button |
| Weight (Approximate) (g) | 158.757 |
| Gang Type | Narrow |
| Material | Stainless Steel |
| Maximum Timer Duration | 20 Second |
| Maximum Timer Duration (Second) | 20 |
| Minimum Timer Duration | 500 ms |
| Minimum Timer Duration (Second) | 0.5 |
| Application/Usage | Access Control System|Door|Indoor/Outdoor |
| Height | 5" (127 mm) |
| Height (mm) | 127 |
| Weight (Approximate) | 158.8 g |
| Width | 2.75" (69.85 mm) |
| Width (mm) | 69.85 |
| Input Voltage | 12V DC|24V DC|30V DC |
| Environmental Certification | ROHS |
| Environmentally Friendly | Yes |
| Features | Surface Mount|Time Delay|Water Resistant|Weather Resistant |
