Brand: Camden Door Controls
|
SKU:
CS478371

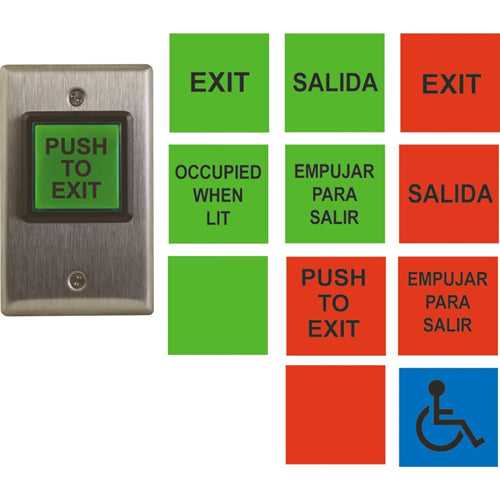

Camden Door Controls CM-30U | Universal Multi Label Switch, 12 English and Spanish Insert Labels
Regular price
$56.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-30U | Universal Multi Label Switch, 12 Engl...
Regular price
$56.70
Unit price
Brand: Camden Door Controls
|
SKU:
CS478371
Regular price
$56.70
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CM-30U UL compliant request to exit (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications. The unit offers "PUSH TO EXIT", "EXIT", "OCCUPIED WHEN LIT" (in English and Spanish)and an ADA logo screen.
Key Features
- High visibility 2" square button
- Single gang stainless steel faceplate
- Offers economical single label 'Push to Exit' version
- Optional LED bulb provides super-bright operation and longevity (10 yr estimate)
- 3yr. 'Camden Tough' warranty with '2 for 1' replacement
Specifications
Specifications
Specifications
| UPC | 670454162915 |
|---|---|
| Also known as | CM30U, CM-30U |
| Voltage | 12/24 VDC |
| Contact Type | SPDT Form 'C' |
| Contact Rating | 10A@30V DC |
| Switch Type | Momentary |
| Current Draw | LED Bulb |
| 14mA, Std. Bulb | 80mA |
| Dimensions | 4 1/2"x 2 3/4" x 2 1/2 (114.3mm x 70mm x 63.5mm) |
| Std. Finish | US32/C32D |
