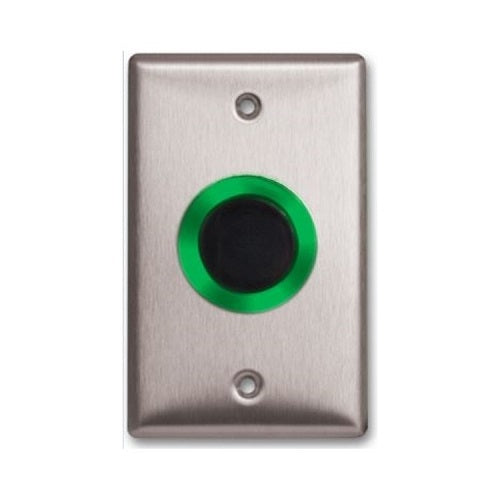

Camden Door Controls CM-331 | SureWave Wireless Touch Switch, 1 Relay
Regular price
$181.82
Unit price
Brand: Camden Door Controls
|
SKU:
727683
Regular price
$181.82
Unit price
Description
Description
The Camden CM-331 is a wired active infra-red 'hands-free' switch with one relay and an option for a wireless transmitter. Sure-Wave Hands-Free Switch are active infra-red devices utilizing micro burst sensor technology, designed for use in ADA compliant automatic door and UL compliant access control applications. The switches eliminate the spread of germs by avoiding physical contact and offer building occupants greater convenience when moving through the premises. There is a complete range of wired, wireless and wired/wireless hi-brid models to provide the best solution for any application. An optional light ring, providing visual indication door status and alarms is available for all line powered models. Sure-Wave switches are available with either stainless steel or impact resistant polycarbonate faceplates, in narrow (jamb), single gang or double gang configurations. All models are ROHS compliant with lead-free construction.
Key Features
- Wired model
- 1 relay wired, SPDT, Form 'C'
- Single gang faceplate
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- 12/24V, AC/DC operation
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- Selectable auto range (operation) mode of up to 6"
- 3 - 30 second time delay
- Selectable fail safe/fail secure operation
- Active output for external alrm, LED or annunciator
- Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status.
Specifications
Specifications
Specifications
| Also known as | CM331 |
|---|---|
| NO. OF IR SENSORS | -2 |
| OPERATING VOLTAGE | 12-24 VOLTS, AC/DC 10% |
| CURRENT DRAW | 40MA |
| STANDARD OPERATING RANGE | 1- 28 (25.4MM - 711.2MM) |
| AUTO RANGE OPERATION | 6-40 (152.4MM 1.016M) HAND; 6-72 (152.4MM 1.820M) BODY |
| OPERATING MODES | MOTION SENSING MODES |
| MOMENTARY, MOMENTARY WITH ALARM, MAINTAINED (LATCHING); RELAY OPERATION MODES | SINGLE EVENT, TOGGLE |
| RELAY OUTPUT | (1) FORM C (SPDT) |
| RELAY CONTACT RATING | 3 AMPS @ 30 VDC |
| ACTIVE OUTPUT | 9-12V |
| OUTPUT TYPE | FAIL SAFE OR FAIL-SECURE |
| INPUTS | REQUEST TO EXIT EXTERNAL (DOOR CONTACT) INPUT |
| OPTIONAL LED RING | ON/OFF, RED, BLUE, GREEN |
| CURRENT DRAW | 8MA MAX |
| WIRELESS OUTPUT | TX-99 PLUG-IN 915MHZ. SPREAD SPECTRUM WIRELESS TRANSMITTER |
