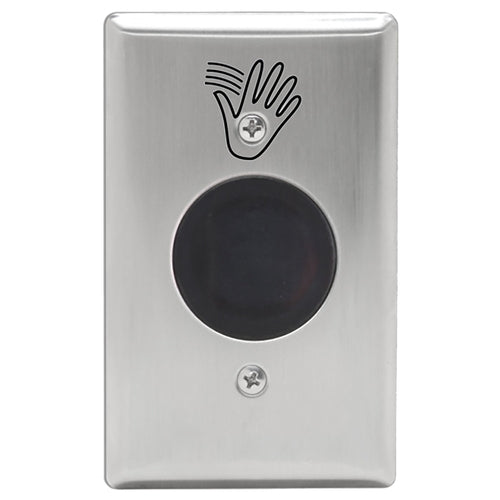

Camden Door Controls CM-332/40S | Camden Surewave Cm-332 Series Touchless Switch, 1" To 28" Range, 2 Relays, Single Gang Stainless Steel Hand Icon Faceplate, Stainless Steel Finish Applied

Camden Door Controls - CM-332/40S - Features

• Technology: Active Infra-red, utilizing microburst sensing technology
• Voltage: 12-24V AC/DC
• Contact Type: CM-331/333/324/325: (1) SPDT Form 'C' CM-332: (2) SPDT Form 'C'
• Contact Rating: CM-331/332/333: 3 Amps @ 30 V CM-324/325: 5 Amps @ 30 V
• Current Draw: CM-331/332: 40 mA CM-324/325: 60 mA
• Wireless: CM-330: Built-In CM-331/332/333: Optional Plug-In
• Wireless Frequency: CM-330 Series: 915 Mhz. Lazerpoint RF Spread Spectrum Wireless
• Battery: CM-330/333: (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C) (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
• Battery Life: Alkaline: 2 years with 100 activations per day
• Adjustable Operating Range: CM-331/332: 1"- 28" (25mm-711mm) CM-330/333: 1"-12" (25mm-304mm) CM-324: 1"-30" (25.4mm-762mm) CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
• Time Delay: CM-330/331/332/333: 3-30 Seconds CM-324/325: 1-5 Seconds
• Operation: Selectable Fail Safe/Fail Secure
• Montion Sensing Modes: CM-331/332/333: Momentary, Momentary with Alarm, Maintained CM-330/324/325: Momentary
• Relay Operating Modes: CM-332: Event, Sequence, Security, Toggle CM-331: Event, Toggle CM-330/333/324/325: Event
• Input: CM-331/332/333: REX, Door Contact
• Blue/Green/Red Light Ring: CM-331/332: Optional
