Brand: Camden Door Controls | SKU: 766029

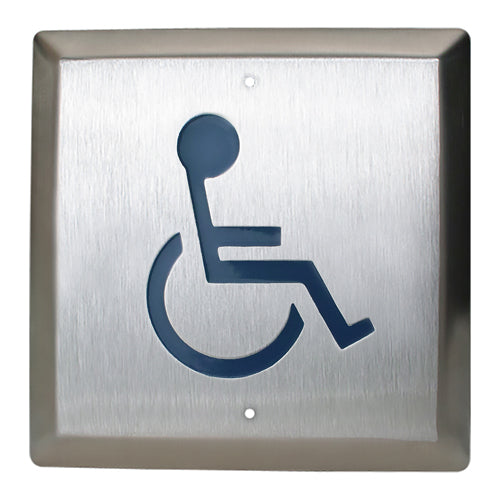

Camden Door Controls CM-45/2-WT | 4-1/2" Square Push Plate Switch, Concealed Screws, ADA Logo, SPDT, Bright Stainless Steel, Boot and Water Tight Coating

$110.06

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Camden CM-452WT is a 4-1/2" square push plate switch with concealed screws. The faceplate features the ADA logo engraved in blue. The switch is equipped with a weather resistant boot and water tight coating. The CM-452WT mounts to standard single gang or double gang electrical boxes. The SPDT switch is rated 15 amps @ 30VDC.

Key Features

Concealed screws
ADA logo printed on the faceplate
SPDT contacts
Bright stainless steel finish
Weather resistant boot and water tight coating
Durable stainless steel or solid brass
4 stud switch design and rubber dampers for quieter operation
3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications

UPC	670454151452
Also known as	CM452WT, CM-452WT
Voltage	12/24 V AC/DC
Switch Type	Momentary
Contact Type	SPDT Form 'C'
Current Rating	15 Amps
Mounting	Single or Double Gang
Finish	US32/C32D
Dimensions	4-1/2" x 4-1/2" x 1-1/4" (114mm x 114mm x 32mm)

Documents and Downloads

Camden Door Controls CM-45/2-WT Data Sheet
