Brand: Camden Door Controls
|
SKU:
766031

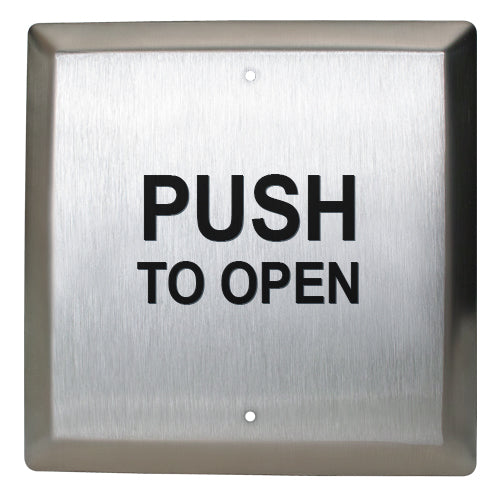

Camden Door Controls CM-45/3-WT | 4-1/2" Square Push Plate Switch, Concealed Screws, PUSH TO OPEN, Stainless Steel, Boot and Water Tight Coating
Regular price
$111.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-45/3-WT | 4-1/2" Square Push Plate Swi...
Regular price
$111.16
Unit price
Brand: Camden Door Controls
|
SKU:
766031
Regular price
$111.16
Unit price
Shipping calculated at checkout.
Description
Description
The Camden 453WT is a 4-1/2" square push plate switch with concealed screws that mounts to standard single gang or double gang electrical boxes. The faceplate features PUSH TO OPEN engraved in black. The unit is equipped with a weather resistant boot and water tight coating. The SPDT (and optional DPDT) switches are rated 15 amps @ 30VDC. The push switches are offered with different graphics, and in various architectural finishes. Weather resistant, and water tight configurations are also available.
Key Features
- Concealed screws
- PUSH TO OPEN on faceplate
- Stainless steel finish
- Weather resistant boot and water tight coating
- Durable stainless steel or solid brass
- 4 stud switch design and rubber dampers for quieter operation
- 3yr. 'Camden Tough' warranty with '2 for 1' replacement
Specifications
Specifications
Specifications
| UPC | 670454126641 |
|---|---|
| Also known as | CM453WT, CM-453WT |
| Voltage | 12/24 V AC/DC |
| Switch Type | Momentary |
| Contact Type | SPDT Form 'C' |
| Current Rating | 15 Amps |
| Mounting | Single or Double Gang |
| Std. Finish | US32 / C32D |
| Dimensions | 4 1/2" x 4 1/2" x 1 1/4" (114mm x 114mm x 32mm) |
