Brand: Camden Door Controls | SKU: 765870

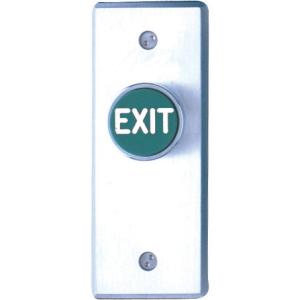

Camden Door Controls CM-7185GE | Medium Duty Vandal Resistant Recessed Push Button, DPST, Time Delay, Narrow, Green Button (EXIT), Blank Faceplate, Brushed Aluminum

Regular price $256.84
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

The Camden 7185GE is a medium duty green vandal resistant recessed push button. The unit has a spring return operation, a DPST 1-60 second pneumatic time delay switch and is mounted on a narrow faceplate. The push button features EXIT engraved in white. The 7185GE is designed and manufactured to meet the stringent demands of exit controls. They are supplied with a 1/4 thick heavy duty brushed aluminum plate in single gang or narrow widths. The unit is specially designed to limit accidental activation (not suitable for ADA applications) and to provide protection from vandalism.

Key Features

  • 1" diameter green button
  • Mounted on heavy 1/4" thick aluminum plate
  • Indoor or outdoor applications
  • Spring return operation
  • Option for paint filled/engraved button, or laser engraved graphics on faceplate
  • Pneumatic time delay models available
  • 3yr. 'Camden Tough' warranty with '2 for 1' replacement

Specifications

Specifications

UPC670454129383
Also known asCM7185GE, CM-7185GE
Voltage12/24V AC/DC
Contact TypeN/O&N/C DPST Form 'Z' Pneumatic Timer
Contact Rating10A@30V DC
Switch TypeMomentary
Dimensions4-1/2" x 1-3/4" x 2-1/4" (114mm x 44mm x 57mm)
FinishBrushed Aluminum
