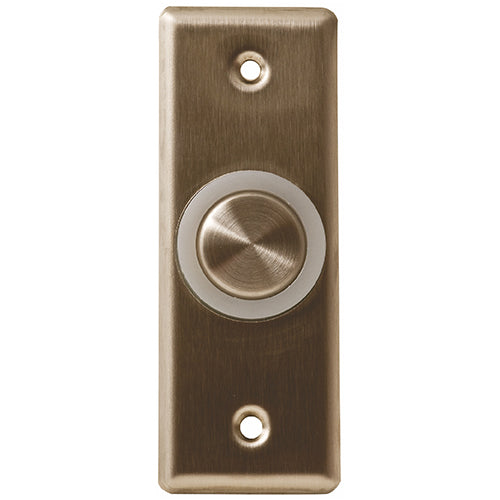

Camden Door Controls CM-9610 | Illuminated Piezoelectric Push/Exit Switch, Narrow, Blank Faceplate, Bright Stainless Steel

The Camden CM-9610 flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer. The CM-9610 is only 1 & 3/4 wide, perfect for door frames or narrow areas. The large 1 round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. The unit features a blank faceplate. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact outpul and fail safe/fail secure operation.
