Brand: Camden Door Controls
|
SKU:
765881

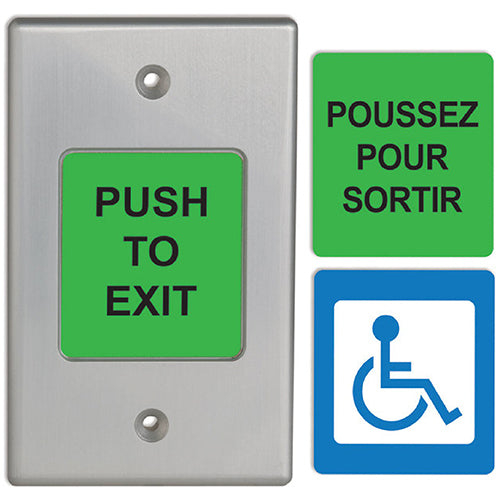

Camden Door Controls CM-9700C | 2" Piezoelectric Push/Exit Switch, Single-Gang, English and French Labels, Brushed Aluminum
Regular price
$161.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-9700C | 2" Piezoelectric Push/Exit Swi...
Regular price
$161.14
Unit price
Brand: Camden Door Controls
|
SKU:
765881
Regular price
$161.14
Unit price
Shipping calculated at checkout.
Description
Description
The Camden CM-9700C is a 2" piezoelectric push/exit switch with three English and French labels (PUSH TO EXIT, POUSSEZ POUR SORTIR, and the ADA logo). The switch is virtually impervious to weather and vandalism due to its unique one-piece aluminum construction and non-moving part design. The switch does not require power to operate and features a brushed aluminum finish.
Key Features
- Brushed aluminum finish
- English and French labels
- Single gang
- One piece aluminum construction
- No moving parts, virtually impervious to vandalism
- No power required to operate
- Lifetime 'Camden Tough' warranty with '2 for 1' replacement
Specifications
Specifications
Specifications
| UPC | 670454171955 |
|---|---|
| Also known as | CM9700C, CM-9700C |
| Voltage | 0 to 40V DC |
| Current Rating | 200mA Typical, 400mA Maximum |
| Output | Solid State N/O |
| Resistance | ON Less Than 50 Ohms, "OFF" Greater Than 5 Ohms |
| Switch Type | Momentary |
| Temp Range | -40F to +180F (-40C to +82C) |
| Dimensions | 4-1/2" x 2-3/4" x 7/8" (114mm x 70mm x 22mm) |
| Protection | IP68 |
| Finish | Brushed Aluminum |
