Brand: Camden Door Controls
|
SKU:
765882
Camden Door Controls CM-9700U | 2" Piezoelectric Push/Exit Switch, Single-Gang, English and Spanish Labels, Brushed Aluminum
Regular price
$162.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-9700U | 2" Piezoelectric Push/Exit Swi...
Regular price
$162.75
Unit price
Brand: Camden Door Controls
|
SKU:
765882
Regular price
$162.75
Unit price
Shipping calculated at checkout.
Description
Description

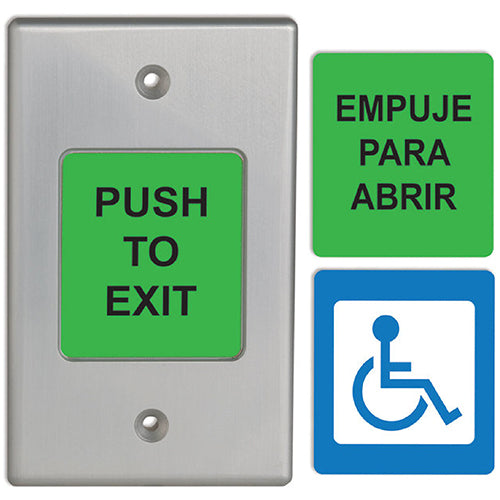

The Camden CM-9700U is a 2" piezoelectric push/exit switch with three English and Spanish labels (PUSH TO EXIT, EMPUJE PARA ABRIR, and the ADA logo). The single-gang switch is virtually impervious to weather and vandalism due to its unique one-piece aluminum construction and non-moving part design. The switch does not require power to operate and features a brushed aluminum finish.
Key Features
- Brushed aluminum finish
- English and Spanish labels
- Single gang
- One piece aluminum construction
- No moving parts, virtually impervious to vandalism
- No power required to operate
- Lifetime 'Camden Tough' warranty with '2 for 1' replacement
Specifications
Specifications
Specifications
| UPC | 670454157348 |
|---|---|
| Also known as | CM9700U, CM-9700U |
| Voltage | 0 to 40V DC |
| Current Rating | 200mA Typical, 400mA Maximum |
| Output | Solid State N/O |
| Resistance | ON Less Than 50 Ohms, "OFF" Greater Than 5 Ohms |
| Switch Type | Momentary |
| Temp Range | -40F to +180F (-40C to +82C) |
| Dimensions | 4-1/2" x 2-3/4" x 7/8" (114mm x 70mm x 22mm) |
| Protection | IP68 |
| Finish | Brushed Aluminum |
